MySQL 源码阅读 —— macOS CLion 编译调试 MySQL 5.7

来源：SegmentFault 2023-01-29 12:57:02 0浏览收藏

积累知识，胜过积蓄金银！毕竟在##column_title##开发的过程中，会遇到各种各样的问题，往往都是一些细节知识点还没有掌握好而导致的，因此基础知识点的积累是很重要的。下面本文《MySQL 源码阅读 —— macOS CLion 编译调试 MySQL 5.7》，就带大家讲解一下MySQL、编译、MacOS、源码分析、clion知识点，若是你对本文感兴趣，或者是想搞懂其中某个知识点，就请你继续往下看吧~

macOS + VSCode 版本看这里

环境信息

macOS Big Sur 11.5.2
CLion 2021.2
MySQL 5.7.35
CMake 3.21.1
openssl 1.1

下载源码

从官网下载携带
mv VERSION MYSQL_VERSION
sed -i '' 's|${CMAKE_SOURCE_DIR}/VERSION|${CMAKE_SOURCE_DIR}/MYSQL_VERSION|g' cmake/mysql_version.cmake
具体原因，可参考文章：MySQL 源码 —— 问题 expanded from macro MYSQL_VERSION_MAJOR

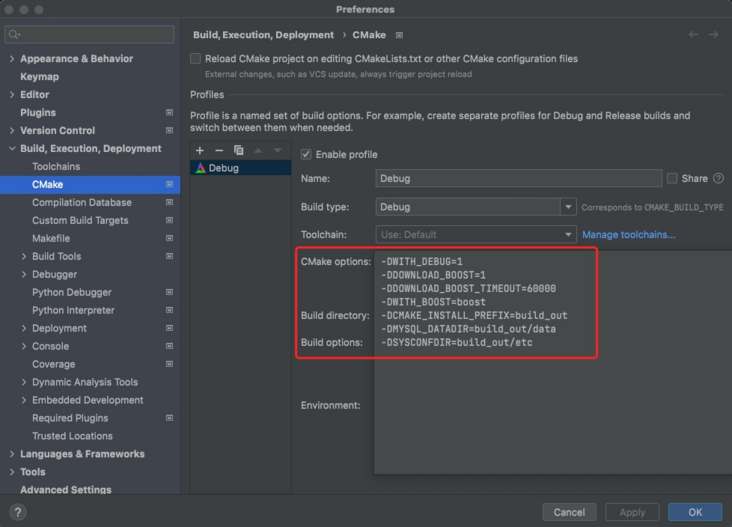

配置 CMake
CMake options 配置如下：
# 为何加`cmake-build-debug`前缀，因为`CLion`中`CMake`的`Build directory`就是`cmake-build-debug`，可自行修改
mkdir -p cmake-build-debug/build_out cmake-build-debug/build_out/data cmake-build-debug/build_out/etc
运行 CMake
方法一：
/Applications/CLion.app/Contents/bin/cmake/mac/bin/cmake -DCMAKE_BUILD_TYPE=Debug -DWITH_DEBUG=1 -DDOWNLOAD_BOOST=1 -DDOWNLOAD_BOOST_TIMEOUT=60000 -DWITH_BOOST=boost -DCMAKE_INSTALL_PREFIX=build_out -DMYSQL_DATADIR=build_out/data -DSYSCONFDIR=build_out/etc -DMYSQL_TCP_PORT=3307 -DMYSQL_UNIX_ADDR=mysql-debug.sock -DCMAKE_DEPENDS_USE_COMPILER=FALSE -G "CodeBlocks - Unix Makefiles" /path/to/mysql-5.7.35

······
-- Configuring done
-- Generating done
-- Build files have been written to: /path/to/mysql-5.7.35/cmake-build-debug
编译 mysqld
点击
====================[ Build | mysqld | Debug ]==================================
/Applications/CLion.app/Contents/bin/cmake/mac/bin/cmake --build /path/to/mysql-5.7.35/cmake-build-debug --target mysqld -- -j 3
[  0%] Built target regex
··· 中间日志省略 ···
[100%] Built target mysqld

Build finished
配置 my.cnf
如有其他定制化配置需要，可添加/修改
[mysqld]
innodb_file_per_table = 1
初始化 mysqld
点击
mysql -uroot -P3307 -h127.0.0.1

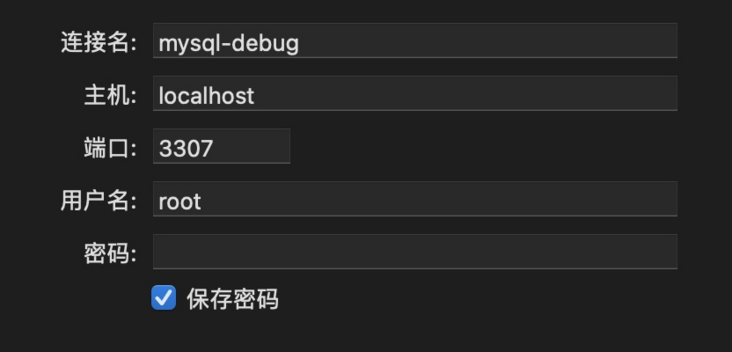

也可以通过 Navicat 连接：
然后在客户端输入一条 SQL，
cmake . -DWITH_BOOST=boost
不带
cmake . \
-DDOWNLOAD_BOOST=1 \
-DWITH_BOOST=<directory></directory>
这是 MySQL 建议的构建方式。CMake 会到
wget https://nchc.dl.sourceforge.net/project/boost/boost/1.59.0/boost_1_59_0.tar.gz
tar -zxf boost_1_59_0.tar.gz
cmake . \
-DWITH_BOOST=<directory></directory>
Warning: define bzero please_use_memset_rather_than_bzero
在构建过程中，可能会报如下 Warning
[ 31%] Building C object storage/myisammrg/CMakeFiles/myisammrg.dir/myrg_records.c.o
In file included from /path/to/mysql-5.7.35/storage/myisam/mi_page.c:25:
In file included from /path/to/mysql-5.7.35/storage/myisam/myisamdef.h:26:
In file included from /path/to/mysql-5.7.35/include/myisam.h:34:
/path/to/mysql-5.7.35/include/m_string.h:32:9: warning: 'bzero' macro redefined [-Wmacro-redefined]
#define bzero please_use_memset_rather_than_bzero
        ^
/Library/Developer/CommandLineTools/SDKs/MacOSX11.3.sdk/usr/include/secure/_strings.h:52:9: note: previous definition is here
#define bzero(dest, ...) \
        ^
In file included from /path/to/mysql-5.7.35/storage/myisammrg/myrg_records.c:24:
In file included from /path/to/mysql-5.7.35/storage/myisammrg/myrg_def.h:25:
In file included from /path/to/mysql-5.7.35/storage/myisammrg/../myisam/myisamdef.h:26:
In file included from /path/to/mysql-5.7.35/include/myisam.h:34:
/path/to/mysql-5.7.35/include/m_string.h:32:9: warning: 'bzero' macro redefined [-Wmacro-redefined]
#define bzero please_use_memset_rather_than_bzero
        ^
/Library/Developer/CommandLineTools/SDKs/MacOSX11.3.sdk/usr/include/secure/_strings.h:52:9: note: previous definition is here
#define bzero(dest, ...) \
        ^
1 warning generated.
/Library/Developer/CommandLineTools/SDKs/MacOSX11.3.sdk/usr/include/secure/_strings.h:52:9: note: previous definition is here

#define bzero(dest, ...) \
        __builtin___memset_chk (dest, 0, __VA_ARGS__, __darwin_obsz0 (dest))
#endif
意思是
/path/to/mysql-5.7.35/include/m_string.h:32:9: warning: 'bzero' macro redefined [-Wmacro-redefined]

#define bzero please_use_memset_rather_than_bzero
而
mysql
中的宏定义却并非函数代码，反而提示应该用
memset
函数，而非
bzero
函数，此意是提示
MySQL
开发者后续要修改代码了。此处是用 redefined 来提示，并不对实际运行产生影响。在 MySQL 8.0 中已经没了此类提示。
所以，此类 Warning 我们可忽略。
expanded from macro MYSQL_VERSION_MAJOR
参考 MySQL 源码 —— 问题 expanded from macro MYSQL_VERSION_MAJOR

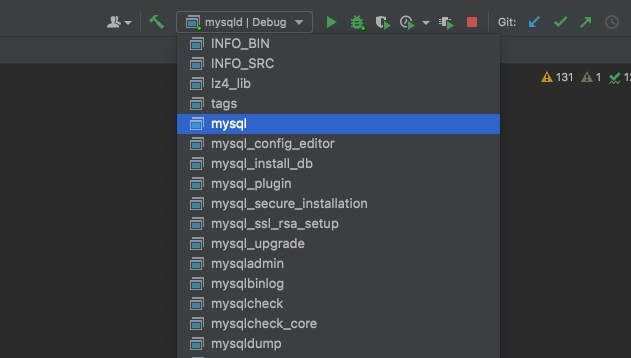

编译 mysql 等工具
此前，我们只编译了
mysqld
服务器这一个软件。但我们需要
mysql
客户端，或
mysqldump
等其他工具时，也可以选择配置其他项，并点击
Build
就可以。
参考资料
《MySQL Internals Manual》Building MySQL Server with CMake
《MySQL 5.7 Reference Manual》Installing MySQL from Source
《MySQL 5.7 Reference Manual》MySQL Source-Configuration Options
MySQL 源码阅读 —— 问题 expanded from macro MYSQL_VERSION_MAJOR
感谢您的阅读，觉得内容不错，点个赞吧 ?
原文地址: https://shockerli.net/post/mysql-source-macos-clion-debug-5-7/
