GoLang中的timer定时器实现原理分析

// NewTimer creates a new Timer that will send
// the current time on its channel after at least duration d.
func NewTimer(d Duration) *Timer {
	c := make(chan Time, 1)
	t := &Timer{
		C: c,
		r: runtimeTimer{
			when: when(d),
			f:    sendTime,
			arg:  c,
		},
	}
	startTimer(&t.r)
	return t
}
// The Timer type represents a single event.
// When the Timer expires, the current time will be sent on C,
// unless the Timer was created by AfterFunc.
// A Timer must be created with NewTimer or AfterFunc.
type Timer struct {
	C

func NewTicker(d Duration) *Ticker {
	if d

// Interface to timers implemented in package runtime.
// Must be in sync with ../runtime/time.go:/^type timer
type runtimeTimer struct {
	pp       uintptr
	when     int64 //触发时间
	period   int64 //执行周期性任务的时间间隔
	f        func(any, uintptr) // 执行的回调函数，NOTE: must not be closure
	arg      any //执行任务的参数
	seq      uintptr //回调函数的参数，该参数仅在 netpoll 的应用场景下使用
	nextwhen int64 //如果是周期性任务，下次执行任务时间
	status   uint32 //状态
}
// sendTime does a non-blocking send of the current time on c.
func sendTime(c any, seq uintptr) {
	select {
	case c.(chan Time)

// runtime/runtime2.go
type p struct {
    .....
    // The when field of the first entry on the timer heap.
	// This is updated using atomic functions.
	// This is 0 if the timer heap is empty.

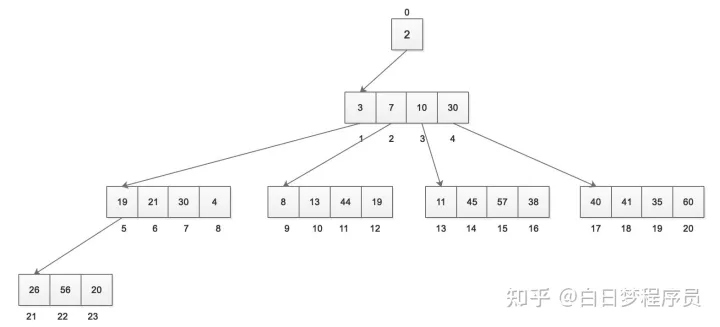

    // 堆顶元素什么时候执行
	timer0When uint64
    // The earliest known nextwhen field of a timer with
	// timerModifiedEarlier status. Because the timer may have been
	// modified again, there need not be any timer with this value.
	// This is updated using atomic functions.
	// This is 0 if there are no timerModifiedEarlier timers.
    // 如果有timer修改为更早执行时间了，将会将执行时间更新到更早时间
	timerModifiedEarliest uint64
    // Lock for timers. We normally access the timers while running
	// on this P, but the scheduler can also do it from a different P.
    // 操作timer的互斥锁
	timersLock mutex
    // Actions to take at some time. This is used to implement the
	// standard library's time package.
	// Must hold timersLock to access.
    //该p 上的所有timer,必须加锁去操作这个字段，因为不同的p 操作这个字段会有竞争关系
	timers []*timer
	// Number of timers in P's heap.
	// Modified using atomic instructions.
    //p 堆上所有的timer数
	numTimers uint32
    // Number of timerDeleted timers in P's heap.
	// Modified using atomic instructions.
    //被标记为删除的timer,要么是我们调用stop,要么是timer 自己触发后过期导致的删除
	deletedTimers uint32
}
// runtime/time.go
type timer struct {
	// If this timer is on a heap, which P's heap it is on.
	// puintptr rather than *p to match uintptr in the versions
	// of this struct defined in other packages.
	pp puintptr
	// Timer wakes up at when, and then at when+period, ... (period > 0 only)
	// each time calling f(arg, now) in the timer goroutine, so f must be
	// a well-behaved function and not block.
	//
	// when must be positive on an active timer.
	when   int64
	period int64
	f      func(any, uintptr)
	arg    any
	seq    uintptr
	// What to set the when field to in timerModifiedXX status.
	nextwhen int64
	// The status field holds one of the values below.
	status uint32
}
// startTimer adds t to the timer heap.
//go:linkname startTimer time.startTimer
func startTimer(t *timer) {
	if raceenabled {
		racerelease(unsafe.Pointer(t))
	}
	addtimer(t)
}
// stopTimer stops a timer.
// It reports whether t was stopped before being run.
//go:linkname stopTimer time.stopTimer
func stopTimer(t *timer) bool {
	return deltimer(t)
}
// addtimer adds a timer to the current P.
// This should only be called with a newly created timer.
// That avoids the risk of changing the when field of a timer in some P's heap,
// which could cause the heap to become unsorted.
func addtimer(t *timer) {
	// when must be positive. A negative value will cause runtimer to
	// overflow during its delta calculation and never expire other runtime
	// timers. Zero will cause checkTimers to fail to notice the timer.
	if t.when

//go:nosplit
func acquirem() *m {
	_g_ := getg()
	_g_.m.locks++
	return _g_.m
}
//go:nosplit
func releasem(mp *m) {
	_g_ := getg()
	mp.locks--
	if mp.locks == 0 && _g_.preempt {
		// restore the preemption request in case we've cleared it in newstack
		_g_.stackguard0 = stackPreempt
	}
}

//C:\Go\src\runtime\preempt.go +287
func canPreemptM(mp *m) bool {
   return mp.locks == 0 && mp.mallocing == 0 && mp.preemptoff == "" && mp.p.ptr().status == _Prunning
}

// runtime/proc.go
func checkTimers(pp *p, now int64) (rnow, pollUntil int64, ran bool)
// runtime/time.go
func runtimer(pp *p, now int64) int64
func runOneTimer(pp *p, t *timer, now int64)
