新特性解读 | InnoDB ReplicaSet：MySQL 副本集初体验

来源：SegmentFault 2023-01-16 19:38:59 0浏览收藏

来到golang学习网的大家，相信都是编程学习爱好者，希望在这里学习数据库相关编程知识。下面本篇文章就来带大家聊聊《新特性解读 | InnoDB ReplicaSet：MySQL 副本集初体验》，介绍一下MySQL，希望对大家的知识积累有所帮助，助力实战开发！

作者：任仲禹

一、InnoDB ReplicaSet 介绍

MySQL 副本集（官方名称：MySQL InnoDB ReplicaSet）在 MySQL 8.0.19 版本（2020-01-13 Released）之后开始支持，本质还是是基于 GTID 的异步复制
角色分为 Primary 和 Secondary
- Primary 即传统意义上的 Master，一个副本集只允许一个
- Secondary 即 Slave，允许一个或多个
通过 MySQL Shell 自带的 AdminAPI 创建、配置、删除等管理副本集
通过 MySQL Router 使用副本集，引导与连接方式与 InnoDB Cluster 和 MGR 有点类似，不同之处在于新增了 cluster_type = rs 集群类型。

二、通过 MySQL Shell 部署 Sandbox 实例

MySQL Shell 除了集成 AdminAPI 外还提供了 MySQL Sandbox 功能，可轻松部署用以测试的 MySQL 数据库实例

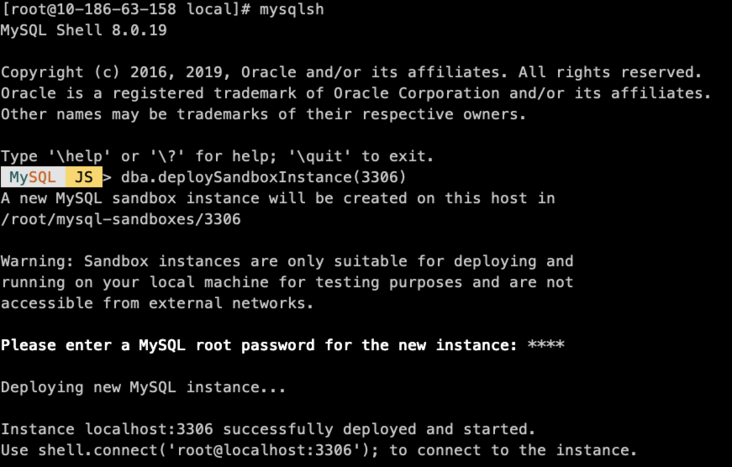

通过 Sandbox 一键部署三个 MySQL 实例

# mysqlsh
 MySQL  JS > dba.deploySandboxInstance(3306)
 MySQL  JS > dba.deploySandboxInstance(3307)
 MySQL  JS > dba.deploySandboxInstance(3308)

指定 root 密码后自动创建 MySQL 实例，默认数据目录在 $HOME/mysql-sandboxes/port

三、通过 MySQL Shell 配置 InnoDB 副本集

3.1 创建集群管理账户

创建集群管理员账户 repl 作为具有管理 InnoDB ReplicaSet 所需的权限集合

 MySQL  JS > dba.configureReplicaSetInstance('root@localhost:3306', {clusterAdmin: "'repl'@'%'", clusterAdminPassword: 'repl'});

3.2 创建 InnoDB 副本集

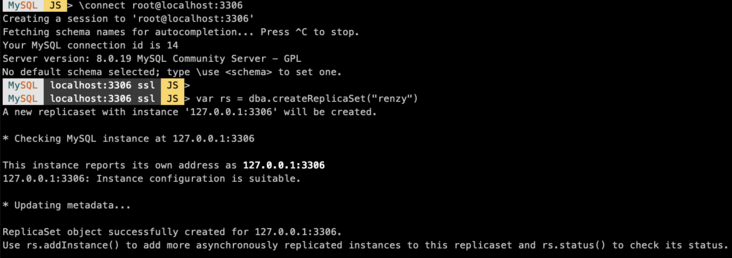

连接到第一个 MySQL 实例 3306，创建命名为 renzy 的副本集

 MySQL  JS > \connect root@localhost:3306
 MySQL  localhost:3306 ssl  JS > var rs = dba.createReplicaSet("renzy")

查看副本集状态，默认第一个实例 3306 选举为 Primary 节点

 MySQL  localhost:3306 ssl  JS > rs.status()
{
    "replicaSet": {
        "name": "renzy",
        "primary": "127.0.0.1:3306",
        "status": "AVAILABLE",
        "statusText": "All instances available.",
        "topology": {
            "127.0.0.1:3306": {
                "address": "127.0.0.1:3306",
                "instanceRole": "PRIMARY",
                "mode": "R/W",
                "status": "ONLINE"
            }
        },
        "type": "ASYNC"
    }
}

3.3 添加节点到副本集

 MySQL  localhost:3306 ssl  JS > rs.addInstance('localhost:3307')
 MySQL  localhost:3306 ssl  JS > rs.addInstance('localhost:3308')

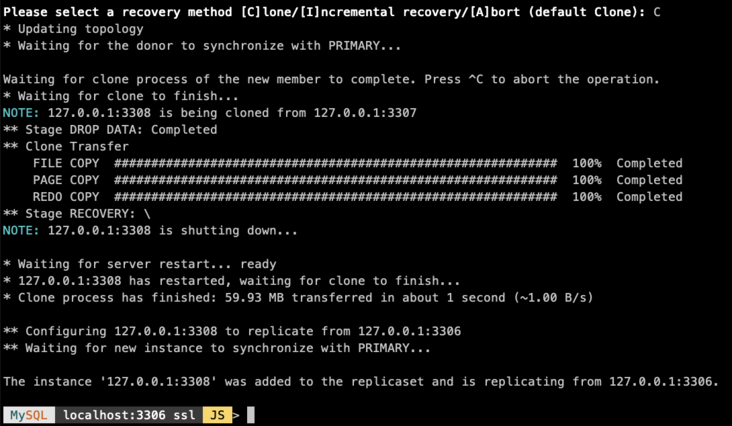

添加节点 3307 和 3308 到副本集涉及到数据拷贝有两种方式：Clone 全量同步和 Inremental recovery 增量同步，本文使用 Clone 全量同步方式从 Primary 节点全量同步数据

查看副本集状态，已添加到副本集的实例 3307 和 3308 的角色为 Secondary ，并自动与 Primary 节点 3306 建立复制关系

 MySQL  localhost:3306 ssl  JS > rs.status()
{
    "replicaSet": {
        "name": "renzy",
        "primary": "127.0.0.1:3306",
        "status": "AVAILABLE",
        "statusText": "All instances available.",
        "topology": {
            "127.0.0.1:3306": {
                "address": "127.0.0.1:3306",
                "instanceRole": "PRIMARY",
                "mode": "R/W",
                "status": "ONLINE"
            },
            "127.0.0.1:3307": {
                "address": "127.0.0.1:3307",
                "instanceRole": "SECONDARY",
                "mode": "R/O",
                "replication": {
                    "applierStatus": "APPLIED_ALL",
                    "applierThreadState": "Slave has read all relay log; waiting for more updates",
                    "receiverStatus": "ON",
                    "receiverThreadState": "Waiting for master to send event",
                    "replicationLag": null
                },
                "status": "ONLINE"
            },
            "127.0.0.1:3308": {
                "address": "127.0.0.1:3308",
                "instanceRole": "SECONDARY",
                "mode": "R/O",
                "replication": {
                    "applierStatus": "APPLIED_ALL",
                    "applierThreadState": "Slave has read all relay log; waiting for more updates",
                    "receiverStatus": "ON",
                    "receiverThreadState": "Waiting for master to send event",
                    "replicationLag": null
                },
                "status": "ONLINE"
            }
        },
        "type": "ASYNC"
    }
}

3.4 副本集在线主从切换

手工在线将实例 3308 切换为 Primary 节点

 MySQL  localhost:3306 ssl  JS > rs.setPrimaryInstance('127.0.0.1:3308')

实例 3308 被提升为 Primary 后，副本集将自动将实例 3306 降级为 Secondary 并与 3308 建立复制关系，副本集中其它实例 3307 也将自动与 3308 建立复制与同步

 MySQL  localhost:3306 ssl  JS > rs.status()
{
    "replicaSet": {
        "name": "renzy",
        "primary": "127.0.0.1:3308",
        "status": "AVAILABLE",
        "statusText": "All instances available.",
        "topology": {
            "127.0.0.1:3306": {
                "address": "127.0.0.1:3306",
                "instanceRole": "SECONDARY",
                "mode": "R/O",
                "replication": {
                    "applierStatus": "APPLIED_ALL",
                    "applierThreadState": "Slave has read all relay log; waiting for more updates",
                    "receiverStatus": "ON",
                    "receiverThreadState": "Waiting for master to send event",
                    "replicationLag": null
                },
                "status": "ONLINE"
            },
            "127.0.0.1:3307": {
                "address": "127.0.0.1:3307",
                "instanceRole": "SECONDARY",
                "mode": "R/O",
                "replication": {
                    "applierStatus": "APPLIED_ALL",
                    "applierThreadState": "Slave has read all relay log; waiting for more updates",
                    "receiverStatus": "ON",
                    "receiverThreadState": "Waiting for master to send event",
                    "replicationLag": null
                },
                "status": "ONLINE"
            },
            "127.0.0.1:3308": {
                "address": "127.0.0.1:3308",
                "instanceRole": "PRIMARY",
                "mode": "R/W",
                "status": "ONLINE"
            }
        },
        "type": "ASYNC"
    }
}

3.5 副本集 Primary 节点故障

手工杀掉 Primary 节点进程

# ps -ef | grep 3308
root     18975     1  0 16:52 ?        00:01:23 /root/mysql-sandboxes/3308/bin/mysqld --defaults-file=/root/mysql-sandboxes/3308/my.cnf --user=root
# kill -9 18975

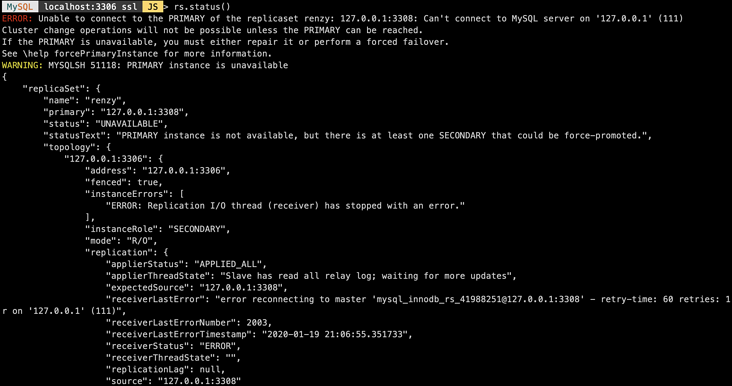

副本集 无法自动进行故障转移，需要人工介入修复

手工将 Secondary 节点 3306 强制提升为 Primary

 MySQL  localhost:3306 ssl  JS > rs.forcePrimaryInstance("127.0.0.1:3306")

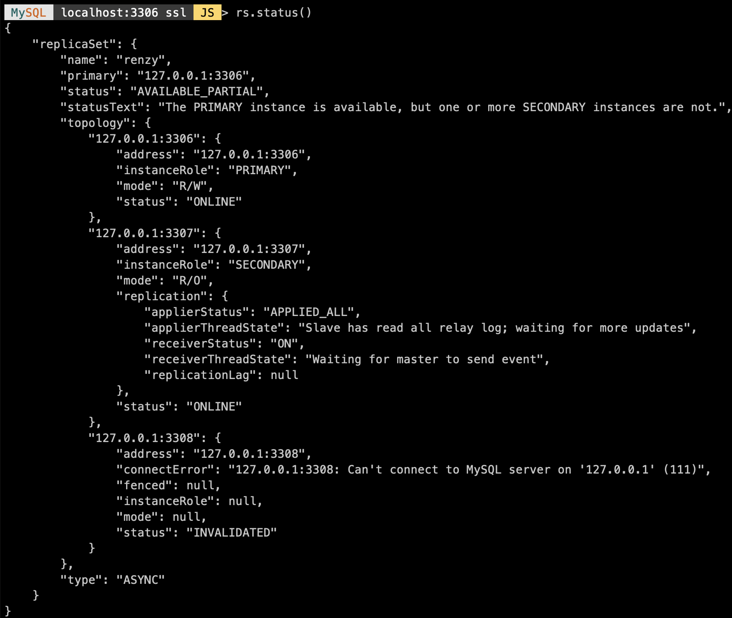

副本集恢复后，因 3308 不可用副本集状态显示为 AVAIABLE_PARITAL (部分可用)

四、通过 MySQL Router 使用副本集

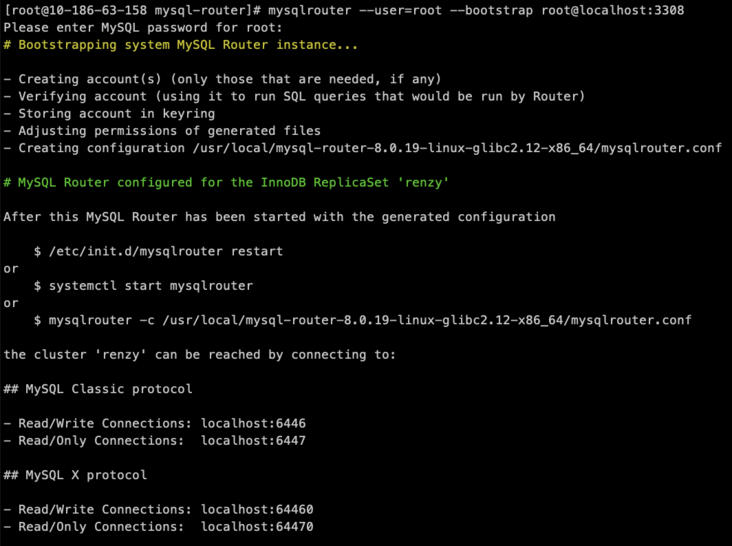

与使用 MySQL Router 连接 MGR 或 InnoDB Cluster 一样，副本集也可以通过 MySQL Router 访问，首先通过 --bootstrap 选项引导副本集

mysqlrouter --user=root --bootstrap root@localhost:3308

五、MySQL Router 通过 R/W 自动连接到 Primary

启动 MySQL Router

mysqlrouter -c /usr/local/mysql-router-8.0.19-linux-glibc2.12-x86_64/mysqlrouter.conf &

// 通过 MySQL Router R/W 端口可以自动识别并连接到 Primary
# mysql -h10.186.63.158 -P6446 -uroot -proot -e 'select @@port;'
mysql: [Warning] Using a password on the command line interface can be insecure.
+--------+
| @@port |
+--------+
|   3308 |
+--------+
# mysql -h10.186.63.158 -P6446 -uroot -proot -e 'show slave hosts;'
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+-----------+------+------------+--------------------------------------+
| Server_id  | Host      | Port | Master_id  | Slave_UUID                           |
+------------+-----------+------+------------+--------------------------------------+
| 1587786506 | 127.0.0.1 | 3307 | 2457151498 | cb569215-3b29-11ea-80f4-02000aba3f9e |
| 3616586416 | 127.0.0.1 | 3306 | 2457151498 | c23ee4be-3b29-11ea-815a-02000aba3f9e |
+------------+-----------+------+------------+--------------------------------------+
