MySQL之xtrabackup备份恢复的实现

来源：脚本之家 2023-02-25 09:03:17 0浏览收藏

哈喽！大家好，很高兴又见面了，我是golang学习网的一名作者，今天由我给大家带来一篇《MySQL之xtrabackup备份恢复的实现》，本文主要会讲到mysqlXtraBackUp、备份恢复等等知识点，希望大家一起学习进步，也欢迎大家关注、点赞、收藏、转发! 下面就一起来看看吧！

mysql版本：8.0.28
xtrabackup版本：8.0.28

1、安装xtrabackup

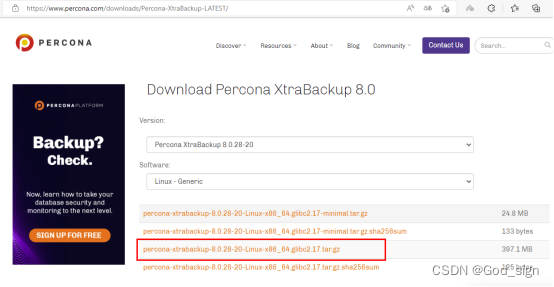

下载地址：Download Percona XtraBackup 8.0

在这里插入图片描述

[root@myoracle ~]# tar -zxvf percona-xtrabackup-8.0.28-20-Linux-x86_64.glibc2.17.tar.gz
[root@myoracle ~]# mv percona-xtrabackup-8.0.28-20-Linux-x86_64.glibc2.17 /usr/local/xtrabackup

2、备份

xtrabackup备份时报错：
[Xtrabackup] failed to execute query ‘LOCK INSTANCE FOR BACKUP' : 1227 (42000) Access denied; you need (at least one of) the BACKUP_ADMIN privilege(s) for this operation
解决方案：
进入mysql
赋予权限
grant BACKUP_ADMIN on *.* to ‘root'@‘%';
flush privileges;

2.1、做一次全备

[root@myoracle bin]# ./xtrabackup -u root -p -S /home/mysql/mysql.sock --backup --target-dir=/data/backup/full
2022-11-02T09:53:02.321003+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized server arguments: --datadir=/home/mysql/data --innodb_buffer_pool_size=512M
2022-11-02T09:53:02.321193+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized client arguments: --port=3306 --socket=/home/mysql/mysql.sock --user=root --password --socket=/home/mysql/mysql.sock --backup=1 --target-dir=/data/backup/full
Enter password:
...
...
2022-11-02T09:53:09.742194+08:00 0 [Note] [MY-011825] [Xtrabackup] Transaction log of lsn (18182291) to (18182301) was copied.
2022-11-02T09:53:09.962188+08:00 0 [Note] [MY-011825] [Xtrabackup] completed OK!
[root@myoracle bin]# ll /data/backup/
total 4
drwxr-x---. 5 root root 4096 Nov  2 09:53 full

2.2、进入mysql添加数据

[root@myoracle bin]# cd /home/mysql/mysql8/bin/
[root@myoracle bin]# ./mysql -u root -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 13
Server version: 8.0.28 MySQL Community Server - GPL

Copyright (c) 2000, 2022, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.00 sec)

mysql> create database dey;
Query OK, 1 row affected (0.07 sec)

mysql> use dey;
Database changed
mysql> create table tb(id int);
Query OK, 0 rows affected (0.07 sec)

mysql> insert into tb values(1),(2);
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

mysql> exit
Bye

2.3、做一次增备

[root@myoracle bin]# cd /usr/local/xtrabackup/bin/
[root@myoracle bin]# ./xtrabackup -u root -p -S /home/mysql/mysql.sock --backup --target-dir=/data/backup/inc1 --incremental-basedir=/data/backup/full/
2022-11-02T09:58:37.492129+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized server arguments: --datadir=/home/mysql/data --innodb_buffer_pool_size=512M
2022-11-02T09:58:37.492345+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized client arguments: --port=3306 --socket=/home/mysql/mysql.sock --user=root --password --socket=/home/mysql/mysql.sock --backup=1 --target-dir=/data/backup/inc1 --incremental-basedir=/data/backup/full/
Enter password:
...
...
2022-11-02T09:58:44.745723+08:00 0 [Note] [MY-011825] [Xtrabackup] Transaction log of lsn (18201617) to (18201627) was copied.
2022-11-02T09:58:44.954584+08:00 0 [Note] [MY-011825] [Xtrabackup] completed OK!
[root@myoracle bin]# ll /data/backup/
total 8
drwxr-x---. 5 root root 4096 Nov  2 09:53 full
drwxr-x---. 6 root root 4096 Nov  2 09:58 inc1

2.4、删除数据库（千万不要在生产库执行！！！）

[root@myoracle bin]# cd -
/home/mysql/mysql8/bin
[root@myoracle bin]# ./mysql -u root -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 16
Server version: 8.0.28 MySQL Community Server - GPL

Copyright (c) 2000, 2022, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| dey                |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.01 sec)

mysql> drop database dey;
Query OK, 1 row affected (0.12 sec)

mysql> exit
Bye

3、恢复

3.1、准备阶段

[root@myoracle bin]# ./xtrabackup --prepare --apply-log-only --target-dir=/data/backup/full/
2022-11-02T10:03:16.369911+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized server arguments: --innodb_checksum_algorithm=crc32 --innodb_log_checksums=1 --innodb_data_file_path=ibdata1:12M:autoextend --innodb_log_files_in_group=2 --innodb_log_file_size=50331648 --innodb_page_size=16384 --innodb_undo_directory=./ --innodb_undo_tablespaces=2 --server-id=0 --innodb_log_checksums=ON --innodb_redo_log_encrypt=0 --innodb_undo_log_encrypt=0
2022-11-02T10:03:16.370082+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized client arguments: --prepare=1 --apply-log-only=1 --target-dir=/data/backup/full/
./xtrabackup version 8.0.28-20 based on MySQL server 8.0.28 Linux (x86_64) (revision id: 4cc3081873d)
...
...
2022-11-02T10:03:18.052072+08:00 0 [Note] [MY-013251] [InnoDB] Number of pools: 1
2022-11-02T10:03:18.054302+08:00 0 [Note] [MY-011825] [Xtrabackup] completed OK!

[root@myoracle bin]# ./xtrabackup --prepare --apply-log-only --target-dir=/data/backup/full/ --incremental-dir=/data/backup/inc1/
2022-11-02T10:04:02.786618+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized server arguments: --innodb_checksum_algorithm=crc32 --innodb_log_checksums=1 --innodb_data_file_path=ibdata1:12M:autoextend --innodb_log_files_in_group=2 --innodb_log_file_size=50331648 --innodb_page_size=16384 --innodb_undo_directory=./ --innodb_undo_tablespaces=2 --server-id=0 --innodb_log_checksums=ON --innodb_redo_log_encrypt=0 --innodb_undo_log_encrypt=0
2022-11-02T10:04:02.786786+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized client arguments: --prepare=1 --apply-log-only=1 --target-dir=/data/backup/full/ --incremental-dir=/data/backup/inc1/
./xtrabackup version 8.0.28-20 based on MySQL server 8.0.28 Linux (x86_64) (revision id: 4cc3081873d)
...
...
2022-11-02T10:04:05.260675+08:00 0 [Note] [MY-011825] [Xtrabackup] Done: Copying /data/backup/inc1/binlog.index to ./binlog.index
2022-11-02T10:04:05.262194+08:00 0 [Note] [MY-011825] [Xtrabackup] completed OK!

[root@myoracle bin]# ./xtrabackup --prepare --target-dir=/data/backup/full/     //最后一次执行不需要--apply-log-only
2022-11-02T10:05:08.225156+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized server arguments: --innodb_checksum_algorithm=crc32 --innodb_log_checksums=1 --innodb_data_file_path=ibdata1:12M:autoextend --innodb_log_files_in_group=2 --innodb_log_file_size=50331648 --innodb_page_size=16384 --innodb_undo_directory=./ --innodb_undo_tablespaces=2 --server-id=0 --innodb_log_checksums=ON --innodb_redo_log_encrypt=0 --innodb_undo_log_encrypt=0
2022-11-02T10:05:08.225323+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized client arguments: --prepare=1 --target-dir=/data/backup/full/
./xtrabackup version 8.0.28-20 based on MySQL server 8.0.28 Linux (x86_64) (revision id: 4cc3081873d)
...
...
2022-11-02T10:05:10.760137+08:00 0 [Note] [MY-012980] [InnoDB] Shutdown completed; log sequence number 18202144
2022-11-02T10:05:10.760601+08:00 0 [Note] [MY-011825] [Xtrabackup] completed OK!

3.2、模仿数据库丢失，停掉服务

[root@myoracle bin]# mv /home/mysql/data/ /home/mysql/data.BAK
[root@myoracle bin]# service mysql stop
Shutting down MySQL.. SUCCESS!

3.3、恢复阶段

[root@myoracle bin]# ./xtrabackup --copy-back --target-dir=/data/backup/full/
2022-11-02T10:05:44.060196+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized server arguments: --datadir=/home/mysql/data --innodb_buffer_pool_size=512M
2022-11-02T10:05:44.060373+08:00 0 [Note] [MY-011825] [Xtrabackup] recognized client arguments: --port=3306 --socket=/home/mysql/mysql.sock --copy-back=1 --target-dir=/data/backup/full/
./xtrabackup version 8.0.28-20 based on MySQL server 8.0.28 Linux (x86_64) (revision id: 4cc3081873d)
2022-11-02T10:05:44.060416+08:00 0 [Note] [MY-011825] [Xtrabackup] cd to /data/backup/full/
2022-11-02T10:05:44.060680+08:00 0 [Note] [MY-011825] [Xtrabackup] Original data directory /home/mysql/data is not empty!
[root@myoracle bin]# cp -a /data/backup/full/ /home/mysql/
[root@myoracle bin]# cd /home/mysql
[root@myoracle mysql]# ll
total 12
drwxr-xr-x. 6 mysql mysql 4096 Nov  2 10:00 data.BAK
drwxr-x---. 7 root  root  4096 Nov  2 10:05 full
drwxrwxr-x. 9 mysql mysql  129 Nov  1 11:25 mysql8
srwxrwxrwx. 1 mysql mysql    0 Nov  2 09:19 mysql.sock
-rw-------. 1 mysql mysql    5 Nov  2 09:19 mysql.sock.lock
[root@myoracle mysql]# chown -R mysql.mysql full/
[root@myoracle mysql]# mv full/ data
[root@myoracle mysql]# ll
total 12
drwxr-x---. 7 mysql mysql 4096 Nov  2 10:05 data
drwxr-xr-x. 6 mysql mysql 4096 Nov  2 10:00 data.BAK
drwxrwxr-x. 9 mysql mysql  129 Nov  1 11:25 mysql8
srwxrwxrwx. 1 mysql mysql    0 Nov  2 09:19 mysql.sock
-rw-------. 1 mysql mysql    5 Nov  2 09:19 mysql.sock.lock

3.4、启动服务

[root@myoracle bin]# service mysql start
Starting MySQL. SUCCESS!
[root@myoracle bin]# ./mysql -u root -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 8
Server version: 8.0.28 MySQL Community Server - GPL

Copyright (c) 2000, 2022, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| dey                |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.01 sec)

mysql>
数据恢复成功

4、定时备份

4.1、全备脚本

#!/bin/bash

date=`date +%F`
backupDir=/data/backup/
target_dir=/data/backup/$date
xtrDir=/usr/local/xtrabackup/bin/xtrabackup
mysqlDir=/home/mysql/mysql8/bin/mysql
backupLog=$backupDir/backuplog
mysql_host=192.168.x.x
mysql_port=3306
mysql_root=root
mysql_password=xxx
mysql_socket=/home/mysql/mysql.sock
mysql_cnf=/etc/my.cnf


$xtrDir --defaults-file=$mysql_cnf --user=$mysql_user --password=$mysql_password --socket=$mysql_socket --compress --compress-threads=2 --backup --target-dir=$target_dir >>$backupLog/backup_full_success.log 2>&1    ##备份时--compress将备份出来的文件压缩成.qp结尾的文件，需要先解压--decompress，不然在prepare时报错找不到xtrabackup_logfile，或者在备份时去掉--compress和--compress-threads，我这里是去掉了。

$xtrDir --prepare --apply-log-only --target-dir=$target_dir >>$backupLog/prepare_full_success.log 2>&1

#find $backupDir -maxdepth 1 -type d -mtime +14 -exec rm -Rf {} \; >>$backupLog/deleted_record.log  2>&1          ##删除14天前的备份文件

4.2、增备脚本

#!/bin/bash

date=`date +%F`
datenum=`date -d "1 days ago" +%F`
cur_dateTime=$(date "+%Y-%m-%d %H:%M:%S")
backupDir=/data/backup
target_dir=/data/backup/$date
xtrDir=/usr/local/xtrabackup/bin/xtrabackup
mysqlDir=/home/mysql/mysql8/bin/mysql
backupLog=$backupDir/backuplog
mysql_host=192.168.x.x
mysql_port=3306
mysql_root=root
mysql_password=xxx
mysql_socket=/home/mysql/mysql.sock
mysql_cnf=/etc/my.cnf

$xtrDir --defaults-file=$mysql_cnf --port=$mysql_port --user=$mysql_user --password=$mysql_password --socket=$mysql_socket --compress --compress-threads=2 --backup --target-dir=$target_dir --incremental-basedir=$backupDir/$datenum >> $backupLog/backup_incr_success.log 2>&1          ##这里和全备脚本一样，需要先解压或者去掉--compress和--compress-threads

$xtrDir --prepare --apply-log-only --target-dir=$backupDir/$datenum --incremental-dir=$target_dir >> $backupLog/prepare_incr_success.log 2>&1

#find $backupDir -maxdepth 1 -type d -mtime +14 -exec rm -Rf {} \; >>$backupLog/deleted_record.log  2>&1            ##删除14天前的备份文件

4.3、添加定时任务

[root@myoracle data]# crontab -l
0 10 * * 7 sh /data/mysql_full_backup.sh        ##周日10点做一次全备
0 10 * * 1-6 sh /data/mysql_incr_backup.sh      ##周一到周六10点做一次增备

理论要掌握，实操不能落！以上关于《MySQL之xtrabackup备份恢复的实现》的详细介绍，大家都掌握了吧！如果想要继续提升自己的能力，那么就来关注golang学习网公众号吧！
