自做Windows上界面美观的PHP集成环境软件

来源：SegmentFault 2023-01-13 21:30:02 0浏览收藏

小伙伴们对数据库编程感兴趣吗？是否正在学习相关知识点？如果是，那么本文《自做Windows上界面美观的PHP集成环境软件》，就很适合你，本篇文章讲解的知识点主要包括MySQL、nginx、PHP、c#、wpf。在之后的文章中也会多多分享相关知识点，希望对大家的知识积累有所帮助！

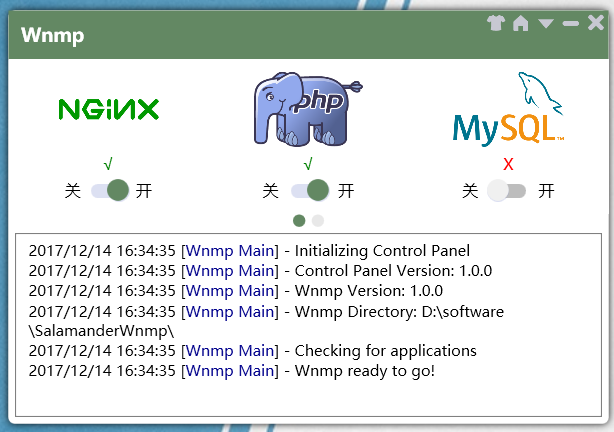

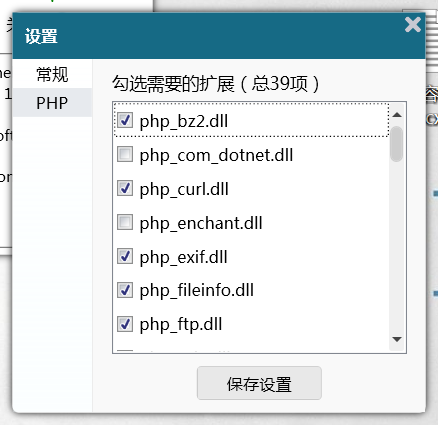

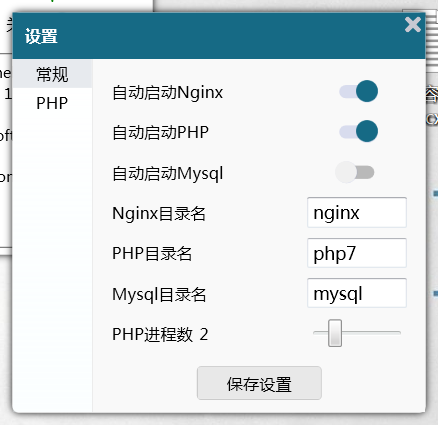

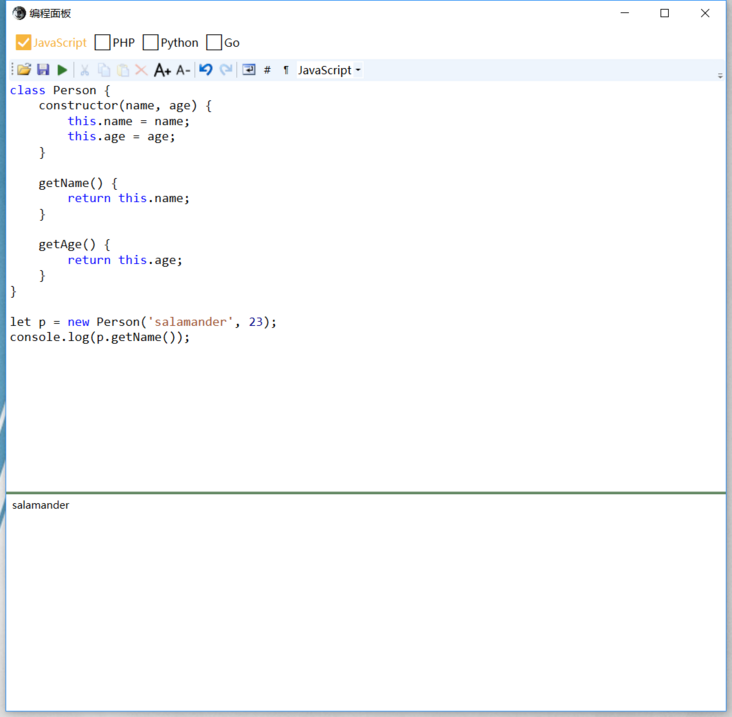

界面展示一下：

源码：SalamanderWnmp
集成包下载，关于这个软件的讲座，自己做个Nginx+PHP+MySQL的集成环境

原因

平常工作中用Nginx比较多，网上虽然也有wnmp集成环境，但是感觉界面不好看，用起来不舒服，所有决定自己做一个吧。

特点

免安装，界面简洁

原料

软件用的是C#，GUI框架是WPF（这个做出来更好看一点），先去官网下载PHP，用的是NTS版本的（因为这里PHP是以CGi的形式跑的），再去下载Windows版的Nginx和Mysql

代码

基类（BaseProgram.cs）

public abstract class BaseProgram: INotifyPropertyChanged
{
    /// <summary>
    /// exe 执行文件位置
    /// </summary>
    public string exeFile { get; set; }

    /// <summary>
    /// 进程名称
    /// </summary>
    public string procName { get; set; }

    /// <summary>
    /// 进程别名，用来在日志窗口显示
    /// </summary>
    public string programName { get; set; }

    /// <summary>
    /// 进程工作目录（Nginx需要这个参数）
    /// </summary>
    public string workingDir { get; set; }

    /// <summary>
    /// 进程日志前缀
    /// </summary>
    public Log.LogSection progLogSection { get; set; }

    /// <summary>
    /// 进程开启的参数
    /// </summary>
    public string startArgs { get; set; }

    /// <summary>
    /// 关闭进程参数
    /// </summary>
    public string stopArgs { get; set; }

    /// <summary>
    ///
    /// </summary>
    public bool killStop { get; set; }

    /// <summary>
    /// 进程配置目录
    /// </summary>
    public string confDir { get; set; }

    /// <summary>
    /// 进程日志目录
    /// </summary>
    public string logDir { get; set; }


    /// <summary>
    /// 进程异常退出的记录信息
    /// </summary>
    protected string errOutput = "";



    public Process ps = new Process();

    public event PropertyChangedEventHandler PropertyChanged;
    // 是否在运行
    private bool running = false;

    public bool Running
    {
        get
        {
            return this.running;
        }
        set
        {
            this.running = value;
            if(PropertyChanged != null)
            {
                PropertyChanged(this, new PropertyChangedEventArgs("Running"));
            }
        }
    }


    /// <summary>
    /// 设置状态
    /// </summary>
    public void SetStatus()
    {
        if (IsRunning())
        {
            this.Running = true;
        }
        else
        {
            this.Running = false;
        }
    }

    /// <summary>
    /// 启动进程
    /// </summary>
    /// <param name="exe">
    /// <param name="args">
    /// <param name="wait">
    public void StartProcess(string exe, string args, EventHandler exitedHandler = null)
    {
        ps = new Process();
        ps.StartInfo.FileName = exe;
        ps.StartInfo.Arguments = args;
        ps.StartInfo.UseShellExecute = false;
        ps.StartInfo.RedirectStandardOutput = true;
        ps.StartInfo.RedirectStandardError = true;
        ps.StartInfo.WorkingDirectory = workingDir;
        ps.StartInfo.CreateNoWindow = true;
        ps.Start();
        // ErrorDataReceived event signals each time the process writes a line
        // to the redirected StandardError stream
        ps.ErrorDataReceived += (sender, e) => {
            errOutput += e.Data;
        };
        ps.Exited += exitedHandler != null ? exitedHandler : (sender, e) => {
            if (!String.IsNullOrEmpty(errOutput))
            {
                Log.wnmp_log_error("Failed: " + errOutput, progLogSection);
                errOutput = "";
            }
        };
        ps.EnableRaisingEvents = true;

        ps.BeginOutputReadLine();
        ps.BeginErrorReadLine();
    }



    public virtual void Start()
    {
        if(IsRunning())
        {
            return;
        }
        try {
            StartProcess(exeFile, startArgs);
            Log.wnmp_log_notice("Started " + programName, progLogSection);
        } catch (Exception ex) {
            Log.wnmp_log_error("Start: " + ex.Message, progLogSection);
        }
    }

    public virtual void Stop()
    {
        if(!IsRunning())
        {
            return;
        }
        if (killStop == false)
            StartProcess(exeFile, stopArgs);
        var processes = Process.GetProcessesByName(procName);
        foreach (var process in processes) {
                process.Kill();
        }
        Log.wnmp_log_notice("Stopped " + programName, progLogSection);
    }

    /// <summary>
    /// 杀死进程
    /// </summary>
    /// <param name="procName">
    protected void KillProcess(string procName)
    {
        var processes = Process.GetProcessesByName(procName);
        foreach (var process in processes)
        {
            process.Kill();
        }
    }



    public void Restart()
    {
        this.Stop();
        this.Start();
        Log.wnmp_log_notice("Restarted " + programName, progLogSection);
    }

    /// <summary>
    /// 判断程序是否运行
    /// </summary>
    /// <returns></returns>
    public virtual bool IsRunning()
    {
        var processes = Process.GetProcessesByName(procName);
        return (processes.Length != 0);
    }

    /// <summary>
    /// 设置初始参数
    /// </summary>
    public abstract void Setup();
}

开启mysql代码（Mysql.cs）

class MysqlProgram : BaseProgram
{
    private readonly ServiceController mysqlController = new ServiceController();
    public const string ServiceName = "mysql-salamander";

    public MysqlProgram()
    {
        mysqlController.MachineName = Environment.MachineName;
        mysqlController.ServiceName = ServiceName;
    }

    /// <summary>
    /// 移除服务
    /// </summary>
    public void RemoveService()
    {
        StartProcess("cmd.exe", stopArgs);
    }

    /// <summary>
    /// 安装服务
    /// </summary>
    public void InstallService()
    {
        StartProcess(exeFile, startArgs);
    }

    /// <summary>
    /// 获取my.ini中mysql的端口
    /// </summary>
    /// <returns></returns>
    private static int GetIniMysqlListenPort()
    {
        string path = Common.APP_STARTUP_PATH + Common.Settings.MysqlDirName.Value + "/my.ini";
        Regex regPort = new Regex(@"^\s*port\s*=\s*(\d+)");
        Regex regMysqldSec = new Regex(@"^\s*\[mysqld\]");
        using (var sr = new StreamReader(path))
        {
            bool isStart = false;// 是否找到了"[mysqld]"
            string str = null;
            while ((str = sr.ReadLine()) != null)
            {
                if (isStart && regPort.IsMatch(str))
                {
                    MatchCollection matches = regPort.Matches(str);
                    foreach (Match match in matches)
                    {
                        GroupCollection groups = match.Groups;
                        if (groups.Count > 1)
                        {
                            try
                            {
                                return Int32.Parse(groups[1].Value);
                            }
                            catch
                            {
                                return -1;
                            }
                        }
                    }

                }
                // [mysqld]段开始
                if (regMysqldSec.IsMatch(str))
                {
                    isStart = true;
                }
            }
        }
        return -1;
    }


    /// <summary>
    /// 服务是否存在
    /// </summary>
    /// <returns></returns>
    public bool ServiceExists()
    {
        ServiceController[] services = ServiceController.GetServices();
        foreach (var service in services) {
            if (service.ServiceName == ServiceName)
                return true;
        }
        return false;
    }

    public override void Start()
    {
        if (IsRunning())
            return;
        try {
            if (!File.Exists(Common.APP_STARTUP_PATH + Common.Settings.MysqlDirName.Value + "/my.ini"))
            {
                Log.wnmp_log_error("my.ini file not exist", progLogSection);
                return;
            }
            int port = GetIniMysqlListenPort();// -1表示提取出错
            if (port != -1 && PortScanHelper.IsPortInUseByTCP(port))
            {
                Log.wnmp_log_error("Port " + port + " is used", progLogSection);
                return;
            }
            mysqlController.Start();
            Log.wnmp_log_notice("Started " + programName, progLogSection);
        } catch (Exception ex) {
            Log.wnmp_log_error("Start(): " + ex.Message, progLogSection);
        }
    }

    public override void Stop()
    {
        if(!IsRunning())
        {
            return;
        }
        try {
            mysqlController.Stop();
            mysqlController.WaitForStatus(ServiceControllerStatus.Stopped);
            Log.wnmp_log_notice("Stopped " + programName, progLogSection);
        } catch (Exception ex) {
            Log.wnmp_log_error("Stop(): " + ex.Message, progLogSection);
        }
    }


    /// <summary>
    /// 通过ServiceController判断服务是否在运行
    /// </summary>
    /// <returns></returns>
    public override bool IsRunning()
    {
        mysqlController.Refresh();
        try
        {
            return mysqlController.Status == ServiceControllerStatus.Running;
        }
        catch
        {
            return false;
        }
    }

    public override void Setup()
    {
        this.exeFile = Common.APP_STARTUP_PATH + String.Format("{0}/bin/mysqld.exe", Common.Settings.MysqlDirName.Value);
        this.procName = "mysqld";
        this.programName = "MySQL";
        this.workingDir = Common.APP_STARTUP_PATH + Common.Settings.MysqlDirName.Value;
        this.progLogSection = Log.LogSection.WNMP_MARIADB;
        this.startArgs = "--install-manual " + MysqlProgram.ServiceName + " --defaults-file=\"" +
            Common.APP_STARTUP_PATH + String.Format("\\{0}\\my.ini\"", Common.Settings.MysqlDirName.Value);
        this.stopArgs = "/c sc delete " + MysqlProgram.ServiceName;
        this.killStop = true;
        this.confDir = "/mysql/";
        this.logDir = "/mysql/data/";
    }

    /// <summary>
    /// 打开MySQL Client命令行
    /// </summary>
    public static void OpenMySQLClientCmd()
    {
        Process ps = new Process();
        ps.StartInfo.FileName = Common.APP_STARTUP_PATH + String.Format("{0}/bin/mysql.exe", Common.Settings.MysqlDirName.Value);
        ps.StartInfo.Arguments = String.Format("-u{0} -p{1}", Common.Settings.MysqlClientUser.Value, Common.Settings.MysqlClientUserPass.Value);
        ps.StartInfo.UseShellExecute = false;
        ps.StartInfo.CreateNoWindow = false;

        ps.Start();

    }
}

开启php代码（PHP.cs）

class PHPProgram : BaseProgram
{

    private const string PHP_CGI_NAME = "php-cgi";
    private const string PHP_MAX_REQUEST = "PHP_FCGI_MAX_REQUESTS";
    private Object locker = new Object();
    private uint FCGI_NUM = 0;
    private bool watchPHPFCGI = true;
    private Thread watchThread;

    private void DecreaseFCGINum()
    {
        lock (locker)
        {
            FCGI_NUM--;
        }
    }

    private void IncreaseFCGINum()
    {
        lock (locker)
        {
            FCGI_NUM++;
        }
    }


    public PHPProgram()
    {
        if (Environment.GetEnvironmentVariable(PHP_MAX_REQUEST) == null)
            Environment.SetEnvironmentVariable(PHP_MAX_REQUEST, "300");
    }

    public override void Start()
    {
        if(!IsRunning() && PortScanHelper.IsPortInUseByTCP(Common.Settings.PHP_Port.Value))
        {
            Log.wnmp_log_error("Port " + Common.Settings.PHP_Port.Value + " is used", progLogSection);
        }
        else if(!IsRunning())
        {
            for (int i = 0; i
                {
                    DecreaseFCGINum();
                });
                IncreaseFCGINum();
            }
            WatchPHPFCGINum();
            Log.wnmp_log_notice("Started " + programName, progLogSection);
        }
    }

    /// <summary>
    /// 异步查看php-cgi数量
    /// </summary>
    /// <param name="ct">
    /// <returns></returns>
    private void WatchPHPFCGINum()
    {
        watchPHPFCGI = true;
        watchThread = new Thread(() =>
        {
            while (watchPHPFCGI)
            {
                uint delta = Common.Settings.PHPProcesses.Value - FCGI_NUM;
                for (int i = 0; i
                    {
                        DecreaseFCGINum();
                    });
                    IncreaseFCGINum();
                    Console.WriteLine("restart a php-cgi");
                }
            }
        });
        watchThread.Start();
    }

    public void StopWatchPHPFCGINum()
    {
        watchPHPFCGI = false;
    }

    public override void Stop()
    {
        if (!IsRunning())
        {
            return;
        }
        StopWatchPHPFCGINum();
        KillProcess(PHP_CGI_NAME);
        Log.wnmp_log_notice("Stopped " + programName, progLogSection);
    }

    public override void Setup()
    {
        string phpDirPath = Common.APP_STARTUP_PATH + Common.Settings.PHPDirName.Value;

        this.exeFile = string.Format("{0}/php-cgi.exe", phpDirPath);
        this.procName = PHP_CGI_NAME;
        this.programName = "PHP";
        this.workingDir = phpDirPath;
        this.progLogSection = Log.LogSection.WNMP_PHP;
        this.startArgs = String.Format("-b 127.0.0.1:{0} -c {1}/php.ini", Common.Settings.PHP_Port.Value, phpDirPath);
        this.killStop = true;
        this.confDir = "/php/";
        this.logDir = "/php/logs/";
    }
}

开启nginx（Nginx.cs）

这里要注意WorkingDirectory属性设置成nginx目录

class NginxProgram : BaseProgram
{

    public override void Setup()
    {
        this.exeFile = Common.APP_STARTUP_PATH + String.Format("{0}/nginx.exe", Common.Settings.NginxDirName.Value);
        this.procName = "nginx";
        this.programName = "Nginx";
        this.workingDir = Common.APP_STARTUP_PATH + Common.Settings.NginxDirName.Value;
        this.progLogSection = Log.LogSection.WNMP_NGINX;
        this.startArgs = "";
        this.stopArgs = "-s stop";
        this.killStop = false;
        this.confDir = "/conf/";
        this.logDir = "/logs/";
    }

    /// <summary>
    /// 打开命令行
    /// </summary>
    public static void OpenNginxtCmd()
    {
        Process ps = new Process();
        ps.StartInfo.FileName = "cmd.exe";
        ps.StartInfo.Arguments = "";
        ps.StartInfo.UseShellExecute = false;
        ps.StartInfo.CreateNoWindow = false;
        ps.StartInfo.WorkingDirectory = Common.APP_STARTUP_PATH + Common.Settings.NginxDirName.Value;

        ps.Start();

    }
}
