MySQL数据库增量日志解析工具 Canal 实战

来源：SegmentFault 2023-01-14 21:15:39 0浏览收藏

数据库小白一枚，正在不断学习积累知识，现将学习到的知识记录一下，也是将我的所得分享给大家！而今天这篇文章《MySQL数据库增量日志解析工具 Canal 实战》带大家来了解一下MySQL数据库增量日志解析工具 Canal 实战，希望对大家的知识积累有所帮助，从而弥补自己的不足，助力实战开发！

简介

canal，阿里开源工具，主要用途是基于 MySQL 数据库增量日志解析，提供增量数据订阅和消费

应用场景

数据库实时备份
业务cache刷新
索引构建和实时维护，例：将商品数据推送到es中构建倒排索引
带业务逻辑的增量数据处理，例：增量数据推送到第三方平台

官网

https://github.com/alibaba/canal

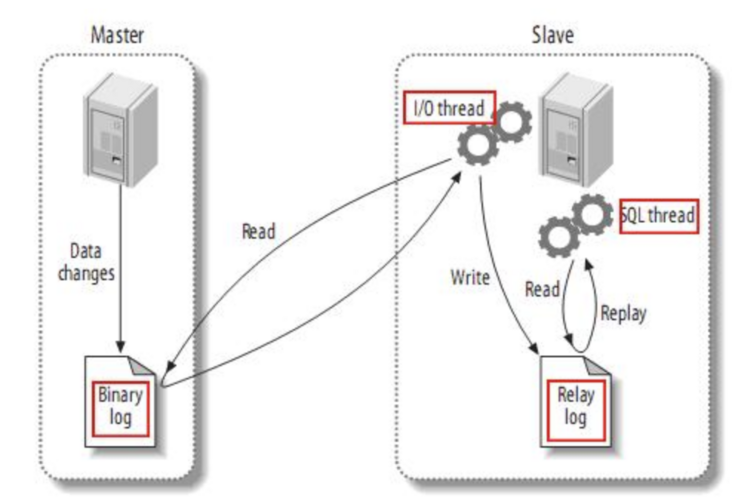

原理

MySQL
```
master
```
将数据写入
```
binlog
```
```
canal
```
向
```
master
```
发送
```
dump
```
协议
```
master
```
收到
```
dump
```
请求，推送
```
binlog
```
给
```
canal
```
```
canal
```
解析
```
binlog
```
，可讲数据投递到
```
MQ
```
系统中，目前支持
```
kafka
```
、
```
RocketMQ
```

安装

配置mysql

建议的mysql版本是5.7.x
mysql8.0.x见官方说明https://github.com/alibaba/ca...

修改mysql配置文件

my.cnf

[mysqld]
log-bin=mysql-bin # 开启 binlog
binlog-format=ROW # 选择 ROW 模式
server_id=1

新增用户并授权，测试的话可以直接使用root用户

CREATE USER canal IDENTIFIED BY 'canal';
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO '123456'@'%';
-- GRANT ALL PRIVILEGES ON *.* TO 'canal'@'%' ;
FLUSH PRIVILEGES;

配置canal

查看是否安装java

➜  canal-admin java -version
java version "1.8.0_251"
Java(TM) SE Runtime Environment (build 1.8.0_251-b08)
Java HotSpot(TM) 64-Bit Server VM (build 25.251-b08, mixed mode)

若没有安装，去oracle官网下载

1.8


访问release页面，下载最新稳定版1.14

wget https://github.com/alibaba/canal/releases/download/canal-1.1.4/canal.deployer-1.1.4.tar.gz

解压到指定目录

mkdir /tmp/canal
tar zxvf canal.deployer-1.1.4.tar.gz  -C /tmp/canal

进入到canal目录，查看文件

➜  ll
total 0
drwxr-xr-x   7 jiao  staff   224B  6  3 17:17 bin
drwxr-xr-x   9 jiao  staff   288B  6  3 20:12 conf
drwxr-xr-x  83 jiao  staff   2.6K  6  1 17:54 lib
drwxr-xr-x   7 jiao  staff   224B  6  3 17:05 logs
drwxr-xr-x   7 jiao  staff   224B  5 29 17:43 pierced

修改

instance

配置文件

vi conf/example/instance.properties

配置参数详解：https://github.com/alibaba/ca...

我这里修改了数据连接地址，用户和密码，以及同步规则：只同步test数据库的sc_user表

## mysql serverId
canal.instance.mysql.slaveId = 1234
#position info，需要改成自己的数据库信息
canal.instance.master.address = 127.0.0.1:3306
canal.instance.dbUsername = canal
canal.instance.dbPassword = 123456
#主库binlog文件路径
#canal.instance.standby.journal.name =
#主库binlog偏移量
#canal.instance.standby.position =
canal.instance.filter.regex = test\\.sc_user

修改

Server

配置文件

vim conf/canal.properties

#tcp bind ip，设置投递到tcp时需设置
canal.ip = 192.168.101.47
#register ip to zookeeper
canal.register.ip = 192.168.101.47
canal.port = 11111
canal.metrics.pull.port = 11112
#canal instance user/passwd
#canal.user = canal
#canal.passwd = E3619321C1A937C46A0D8BD1DAC39F93B27D4458

#canal-admin需设置，先不设置
#canal.admin.manager = 127.0.0.1:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441

#zk设置，单机的canal可不设置
canal.zkServers = 127.0.0.1:2181,127.0.0.1:2182,127.0.0.1:2183
#flush data to zk
canal.zookeeper.flush.period = 1000
canal.withoutNetty = false
#tcp, kafka, RocketMQ，投递到哪
canal.serverMode = RocketMQ
#flush meta cursor/parse position to file
canal.file.data.dir = ${canal.conf.dir}
canal.file.flush.period = 1000
##memory store RingBuffer size, should be Math.pow(2,n)
canal.instance.memory.buffer.size = 16384
##memory store RingBuffer used memory unit size , default 1kb
canal.instance.memory.buffer.memunit = 1024
##meory store gets mode used MEMSIZE or ITEMSIZE
canal.instance.memory.batch.mode = MEMSIZE
canal.instance.memory.rawEntry = true

##detecing config
canal.instance.detecting.enable = false
#canal.instance.detecting.sql = insert into retl.xdual values(1,now()) on duplicate key update x=now()
canal.instance.detecting.sql = select 1
canal.instance.detecting.interval.time = 3
canal.instance.detecting.retry.threshold = 3
canal.instance.detecting.heartbeatHaEnable = false

#support maximum transaction size, more than the size of the transaction will be cut into multiple transactions delivery
canal.instance.transaction.size =  1024
#mysql fallback connected to new master should fallback times
canal.instance.fallbackIntervalInSeconds = 60

#network config
canal.instance.network.receiveBufferSize = 16384
canal.instance.network.sendBufferSize = 16384
canal.instance.network.soTimeout = 30

#binlog filter config
canal.instance.filter.druid.ddl = true
canal.instance.filter.query.dcl = false
canal.instance.filter.query.dml = false
canal.instance.filter.query.ddl = false
canal.instance.filter.table.error = false
canal.instance.filter.rows = false
canal.instance.filter.transaction.entry = false

#binlog format/image check
canal.instance.binlog.format = ROW,STATEMENT,MIXED
canal.instance.binlog.image = FULL,MINIMAL,NOBLOB

#binlog ddl isolation
canal.instance.get.ddl.isolation = false

#parallel parser config
canal.instance.parser.parallel = true
##concurrent thread number, default 60% available processors, suggest not to exceed Runtime.getRuntime().availableProcessors()
#canal.instance.parser.parallelThreadSize = 16
##disruptor ringbuffer size, must be power of 2
canal.instance.parser.parallelBufferSize = 256

#table meta tsdb info
canal.instance.tsdb.enable = true
canal.instance.tsdb.dir = ${canal.file.data.dir:../conf}/${canal.instance.destination:}
canal.instance.tsdb.url = jdbc:h2:${canal.instance.tsdb.dir}/h2;CACHE_SIZE=1000;MODE=MYSQL;
canal.instance.tsdb.dbUsername = canal
canal.instance.tsdb.dbPassword = canal
#dump snapshot interval, default 24 hour
canal.instance.tsdb.snapshot.interval = 24
#purge snapshot expire , default 360 hour(15 days)
canal.instance.tsdb.snapshot.expire = 360

#aliyun ak/sk , support rds/mq
canal.aliyun.accessKey =
canal.aliyun.secretKey =

#################################################
#########         destinations        #############
#################################################
#使用的instance，可设置上面定义的example
canal.destinations = example
#conf root dir
canal.conf.dir = ../conf
#auto scan instance dir add/remove and start/stop instance
canal.auto.scan = true
canal.auto.scan.interval = 5

canal.instance.tsdb.spring.xml = classpath:spring/tsdb/h2-tsdb.xml
#canal.instance.tsdb.spring.xml = classpath:spring/tsdb/mysql-tsdb.xml

canal.instance.global.mode = manager
canal.instance.global.lazy = false
canal.instance.global.manager.address = ${canal.admin.manager}
#canal.instance.global.spring.xml = classpath:spring/memory-instance.xml
canal.instance.global.spring.xml = classpath:spring/file-instance.xml
#canal.instance.global.spring.xml = classpath:spring/default-instance.xml

##################################################
#########              MQ              #############
##################################################
#rocketmq地址设置
canal.mq.servers = 192.168.101.47:9876
canal.mq.retries = 0
canal.mq.batchSize = 16384
canal.mq.maxRequestSize = 1048576
canal.mq.lingerMs = 100
canal.mq.bufferMemory = 33554432
canal.mq.canalBatchSize = 50
canal.mq.canalGetTimeout = 100
canal.mq.flatMessage = true
canal.mq.compressionType = none
canal.mq.acks = all
#canal.mq.properties. =
canal.mq.producerGroup = test
#Set this value to "cloud", if you want open message trace feature in aliyun.
canal.mq.accessChannel = local
#aliyun mq namespace
#canal.mq.namespace =

##################################################
#########     Kafka Kerberos Info    #############
##################################################
canal.mq.kafka.kerberos.enable = false
canal.mq.kafka.kerberos.krb5FilePath = "../conf/kerberos/krb5.conf"
canal.mq.kafka.kerberos.jaasFilePath = "../conf/kerberos/jaas.conf"

测试tcp

下载canal php客户端: https://github.com/xingwenge/canal-php

修改

src/sample/client.php

文件

<?php namespace xingwenge\canal_php\sample;

use xingwenge\canal_php\CanalClient;
use xingwenge\canal_php\CanalConnectorFactory;
use xingwenge\canal_php\Fmt;

require_once __DIR__ . '/../../vendor/autoload.php';

ini_set('display_errors', 'On');
error_reporting(E_ALL);

try {
    $host   = '192.168.101.47';//canal server地址
    $client = CanalConnectorFactory::createClient(CanalClient::TYPE_SOCKET);
    # $client = CanalConnectorFactory::createClient(CanalClient::TYPE_SWOOLE);

    $client->connect($host, 11111);
    $client->checkValid('canal','E3619321C1A937C46A0D8BD1DAC39F93B27D4458');//认证信息，对于canal.properties配置的canal.user 和canal.passwd
//    $client->subscribe("1001", "example", ".*\\..*");
    $client->subscribe("1001", "example", "test.sc_user"); # 设置过滤规则

    while (true) {
        $message = $client->get(100);
        if ($entries = $message->getEntries()) {
            foreach ($entries as $entry) {
                Fmt::println($entry);
            }
        }
        sleep(1);
    }

    $client->disConnect();
} catch (\Exception $e) {
    echo $e->getMessage(), PHP_EOL;
}

运行

canal

sh bin/startup.sh

查看

log

是否有错误信息

tail -n 50 -f logs/example/example.log

输出一下内容说明

canal

已正常启动，

canal

已成功连接

mysql

准备发送

dump

指令同步数据

2020-06-03 19:30:47.625 [destination = example , address = /127.0.0.1:3307 , EventParser] WARN  c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - ---> find start position successfully, EntryPosition[included=false,journalName=mysql-bin.000001,position=303179,serverId=1,gtid=,timestamp=1591183839000] cost : 5ms , the next step is binlog dump

运行

php client.php

，并在数据库

sc_user

表中修改一条数据，可以看到

client

输出了数据库修改的内容
`================> binlog[mysql-bin.000001 : 208118],name[wcc-scm-service,sc_status_history], eventType: 2

-------> before
status_history_id : 2543 update= false
record_id : 662 update= false
status_type : 151 update= false
old_status : 158 update= false
new_status : 153 update= false
opt_type : SELLER_REVOKE update= false
user_id : 282 update= false
user_name : 加工厂1 update= false
remark : update= false
created : 2020-05-28 18:40:02 update= false
-------> after
status_history_id : 2543 update= false
record_id : 662 update= false
status_type : 151 update= false
old_status : 158 update= false
new_status : 153 update= false
opt_type : SELLER_REVOKE update= false
user_id : 282 update= false
user_name : 加工厂12 update= true
remark : update= false
created : 2020-05-28 18:40:02 update= false
TSocket: Could not read 4 bytes from 192.168.101.47:11111`

测试RocketMQ

安装RocketMQ

这里直接在docker里安装

1.安装server

docker run -d -p 9876:9876 --name rocketmq-server -e "MAX\_POSSIBLE\_HEAP=100000000" rocketmqinc/rocketmq sh mqnamesrv

2.新增配置文件

echo "brokerIP1=192.168.101.47" > broker.properties

3.安装

broker

将

/path/broker.properties

替换成第2步文件路径

docker run -d -p 10911:10911 -p 10909:10909 -v /path/broker.properties:/opt/rocketmq-4.4.0/bin/broker.properties --name rocketmq-broker --link rocketmq-server -e "NAMESRV\_ADDR=rocketmq-server:9876" -e "MAX\_POSSIBLE\_HEAP=200000000" rocketmqinc/rocketmq sh mqbroker -c broker.properties

4.安装RocketMQ Web

docker run -e "JAVA\_OPTS=-Drocketmq.namesrv.addr=192.168.101.47:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false" -p 8080:8080 -t styletang/rocketmq-console-ng -d

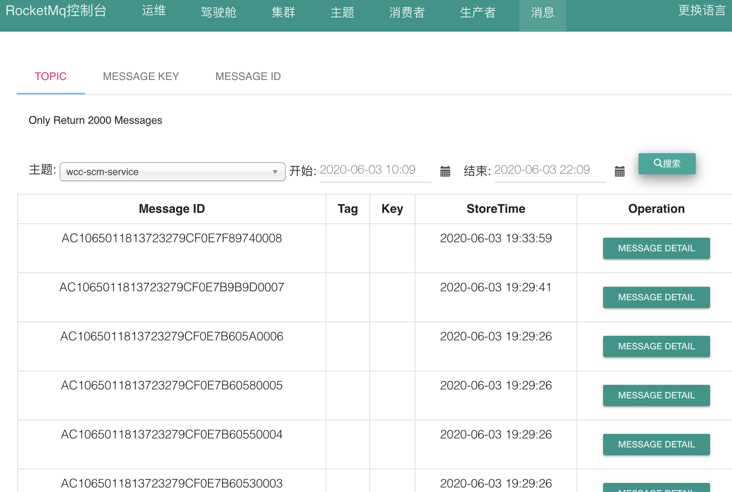

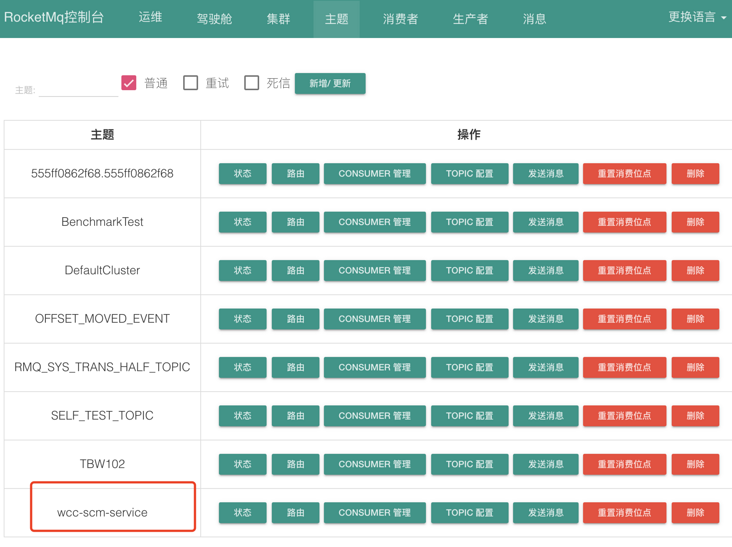

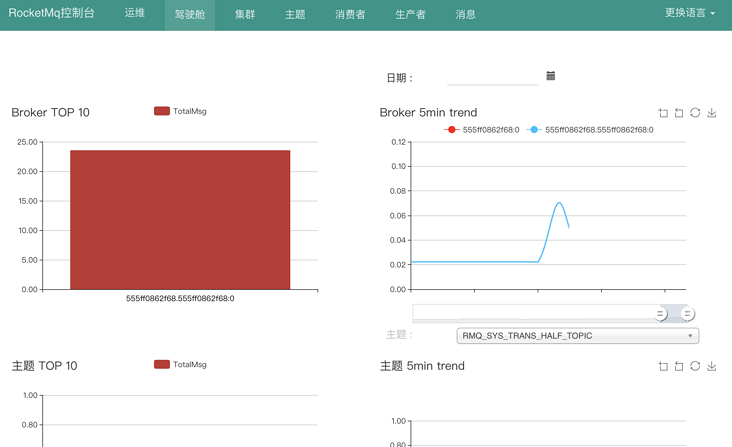

访问Rocket管理页面
http://localhost:8080/
