PyTorch 中的 CocoDetection(2)

来源:dev.to 2025-01-20 17:43:35 0浏览 收藏

学习知识要善于思考,思考,再思考!今天golang学习网小编就给大家带来《PyTorch 中的 CocoDetection(2)》,以下内容主要包含等知识点,如果你正在学习或准备学习文章,就都不要错过本文啦~让我们一起来看看吧,能帮助到你就更好了!

请我喝杯咖啡☕

*我的帖子解释了 ms coco。

cocodetection() 可以使用 ms coco 数据集,如下所示。 *这适用于带有captions_train2017.json、instances_train2017.json和person_keypoints_train2017.json的train2017,带有captions_val2017.json、instances_val2017.json和person_keypoints_val2017.json的val2017以及带有image_info_test2017.json和的test2017 image_info_test-dev2017.json:

from torchvision.datasets import CocoDetection

cap_train2017_data = CocoDetection(
    root="data/coco/imgs/train2017",
    annFile="data/coco/anns/trainval2017/captions_train2017.json"
)

ins_train2017_data = CocoDetection(
    root="data/coco/imgs/train2017",
    annFile="data/coco/anns/trainval2017/instances_train2017.json"
)

pk_train2017_data = CocoDetection(
    root="data/coco/imgs/train2017",
    annFile="data/coco/anns/trainval2017/person_keypoints_train2017.json"
)

len(cap_train2017_data), len(ins_train2017_data), len(pk_train2017_data)
# (118287, 118287, 118287)

cap_val2017_data = CocoDetection(
    root="data/coco/imgs/val2017",
    annFile="data/coco/anns/trainval2017/captions_val2017.json"
)

ins_val2017_data = CocoDetection(
    root="data/coco/imgs/val2017",
    annFile="data/coco/anns/trainval2017/instances_val2017.json"
)

pk_val2017_data = CocoDetection(
    root="data/coco/imgs/val2017",
    annFile="data/coco/anns/trainval2017/person_keypoints_val2017.json"
)

len(cap_val2017_data), len(ins_val2017_data), len(pk_val2017_data)
# (5000, 5000, 5000)

test2017_data = CocoDetection(
    root="data/coco/imgs/test2017",
    annFile="data/coco/anns/test2017/image_info_test2017.json"
)

testdev2017_data = CocoDetection(
    root="data/coco/imgs/test2017",
    annFile="data/coco/anns/test2017/image_info_test-dev2017.json"
)

len(test2017_data), len(testdev2017_data)
# (40670, 20288)

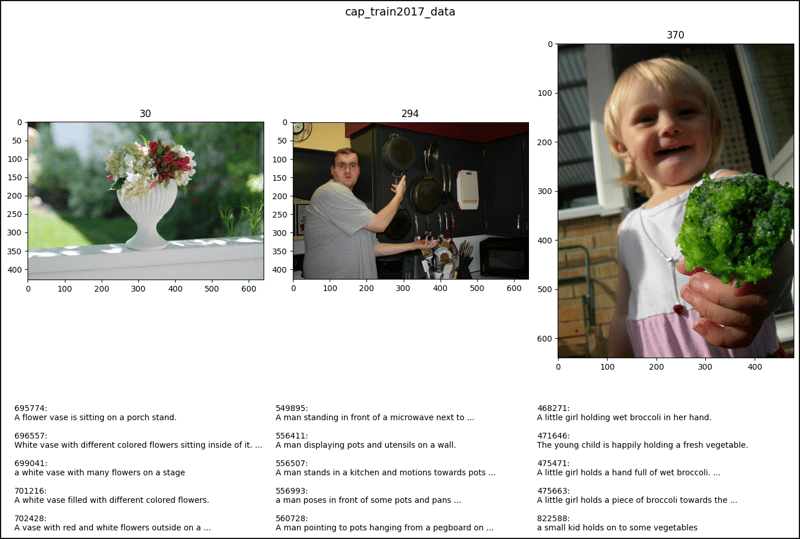

cap_train2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x428>,
#  [{'image_id': 30, 'id': 695774,
#    'caption': 'A flower vase is sitting on a porch stand.'},
#   {'image_id': 30, 'id': 696557,
#    'caption': 'White vase with different colored flowers sitting inside of it. '},
#   {'image_id': 30, 'id': 699041,
#    'caption': 'a white vase with many flowers on a stage'},
#   {'image_id': 30, 'id': 701216,
#    'caption': 'A white vase filled with different colored flowers.'},
#   {'image_id': 30, 'id': 702428,
#    'caption': 'A vase with red and white flowers outside on a sunny day.'}])

cap_train2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x427>,
#  [{'image_id': 294, 'id': 549895,
#    'caption': 'A man standing in front of a microwave next to pots and pans.'},
#   {'image_id': 294, 'id': 556411,
#    'caption': 'A man displaying pots and utensils on a wall.'},
#   {'image_id': 294, 'id': 556507,
#    'caption': 'A man stands in a kitchen and motions towards pots and pans. '},
#   {'image_id': 294, 'id': 556993,
#    'caption': 'a man poses in front of some pots and pans '},
#   {'image_id': 294, 'id': 560728,
#    'caption': 'A man pointing to pots hanging from a pegboard on a gray wall.'}])

cap_train2017_data[64]
# (<PIL.Image.Image image mode=RGB size=480x640>,
#  [{'image_id': 370, 'id': 468271,
#    'caption': 'A little girl holding wet broccoli in her hand. '},
#   {'image_id': 370, 'id': 471646,
#    'caption': 'The young child is happily holding a fresh vegetable. '},
#   {'image_id': 370, 'id': 475471,
#    'caption': 'A little girl holds a hand full of wet broccoli. '},
#   {'image_id': 370, 'id': 475663,
#    'caption': 'A little girl holds a piece of broccoli towards the camera.'},
#   {'image_id': 370, 'id': 822588,
#    'caption': 'a small kid holds on to some vegetables '}])

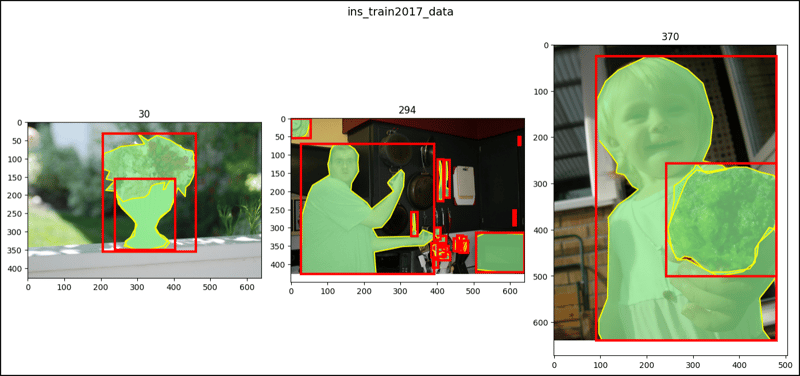

ins_train2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x428>,
#  [{'segmentation': [[267.38, 330.14, 281.81, ..., 269.3, 329.18]],
#    'area': 47675.66289999999, 'iscrowd': 0, 'image_id': 30,
#    'bbox': [204.86, 31.02, 254.88, 324.12], 'category_id': 64,
#    'id': 291613},
#   {'segmentation': ..., 'category_id': 86, 'id': 1155486}])

ins_train2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x427>,
#  [{'segmentation': [[27.7, 423.27, 27.7, ..., 28.66, 427.0]],
#    'area': 64624.86664999999, 'iscrowd': 0, 'image_id': 294,
#    'bbox': [27.7, 69.83, 364.91, 357.17], 'category_id': 1,
#    'id': 470246},
#   {'segmentation': ..., 'category_id': 50, 'id': 708187},
#   ...
#   {'segmentation': ..., 'category_id': 50, 'id': 2217190}])

ins_train2017_data[67]
# (<PIL.Image.Image image mode=RGB size=480x640>,
#  [{'segmentation': [[90.81, 155.68, 90.81, ..., 98.02, 207.57]],
#    'area': 137679.34520000007, 'iscrowd': 0, 'image_id': 370,
#    'bbox': [90.81, 24.5, 389.19, 615.5], 'category_id': 1,
#    'id': 436109},
#   {'segmentation': [[257.51, 446.79, 242.45, ..., 262.02, 460.34]],
#    'area': 43818.18095, 'iscrowd': 0, 'image_id': 370,
#    'bbox': [242.45, 257.05, 237.55, 243.95], 'category_id': 56,
#    'id': 1060727}])

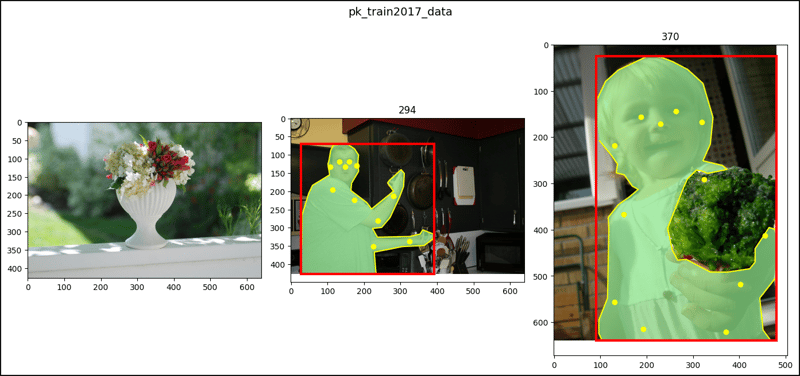

pk_train2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x428>, [])

pk_train2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x427>,
#  [{'segmentation': [[27.7, 423.27, 27.7, ..., 28.66, 427]],
#    'num_keypoints': 11, 'area': 64624.86665, 'iscrowd': 0,
#    'keypoints': [149, 133, 2, 159, ..., 0, 0], 'image_id': 294,
#    'bbox': [27.7, 69.83, 364.91, 357.17], 'category_id': 1,
#    'id': 470246}])

pk_train2017_data[64]
# (<PIL.Image.Image image mode=RGB size=480x640>,
#  [{'segmentation': [[90.81, 155.68, 90.81, ..., 98.02, 207.57]],
#    'num_keypoints': 12, 'area': 137679.3452, 'iscrowd': 0,
#    'keypoints': [229, 171, 2, 263, ..., 0, 0], 'image_id': 370,
#    'bbox': [90.81, 24.5, 389.19, 615.5], 'category_id': 1,
#    'id': 436109}])

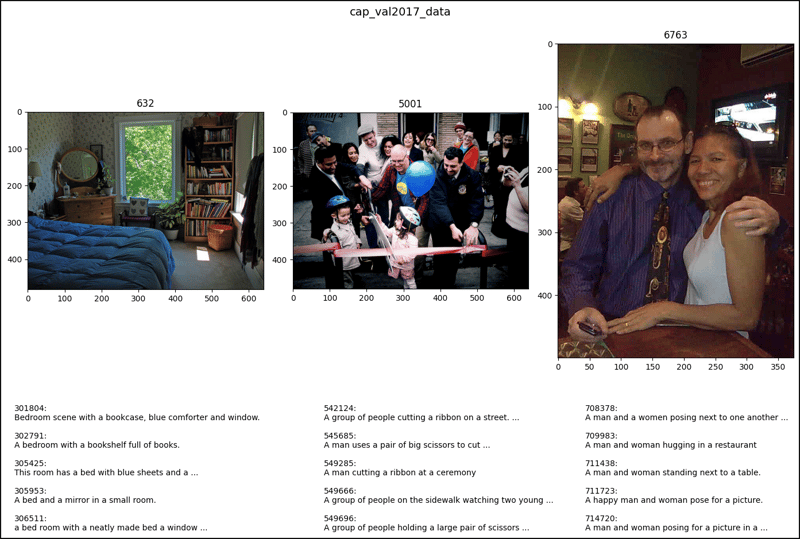

cap_val2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x483>,
#  [{'image_id': 632, 'id': 301804,
#    'caption': 'Bedroom scene with a bookcase, blue comforter and window.'},
#   {'image_id': 632, 'id': 302791,
#    'caption': 'A bedroom with a bookshelf full of books.'},
#   {'image_id': 632, 'id': 305425,
#    'caption': 'This room has a bed with blue sheets and a large bookcase'},
#   {'image_id': 632, 'id': 305953,
#    'caption': 'A bed and a mirror in a small room.'},
#   {'image_id': 632, 'id': 306511,
#    'caption': 'a bed room with a neatly made bed a window and a book shelf'}])

cap_val2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x480>,
#  [{'image_id': 5001, 'id': 542124,
#    'caption': 'A group of people cutting a ribbon on a street.'},
#   {'image_id': 5001, 'id': 545685,
#    'caption': 'A man uses a pair of big scissors to cut a pink ribbon.'},
#   {'image_id': 5001, 'id': 549285,
#    'caption': 'A man cutting a ribbon at a ceremony '},
#   {'image_id': 5001, 'id': 549666,
#    'caption': 'A group of people on the sidewalk watching two young children.'},
#   {'image_id': 5001, 'id': 549696,
#    'caption': 'A group of people holding a large pair of scissors to a ribbon.'}])

cap_val2017_data[64]
# (<PIL.Image.Image image mode=RGB size=375x500>,
#  [{'image_id': 6763, 'id': 708378,
#    'caption': 'A man and a women posing next to one another in front of a table.'},
#   {'image_id': 6763, 'id': 709983,
#    'caption': 'A man and woman hugging in a restaurant'},
#   {'image_id': 6763, 'id': 711438,
#    'caption': 'A man and woman standing next to a table.'},
#   {'image_id': 6763, 'id': 711723,
#    'caption': 'A happy man and woman pose for a picture.'},
#   {'image_id': 6763, 'id': 714720,
#    'caption': 'A man and woman posing for a picture in a sports bar.'}])

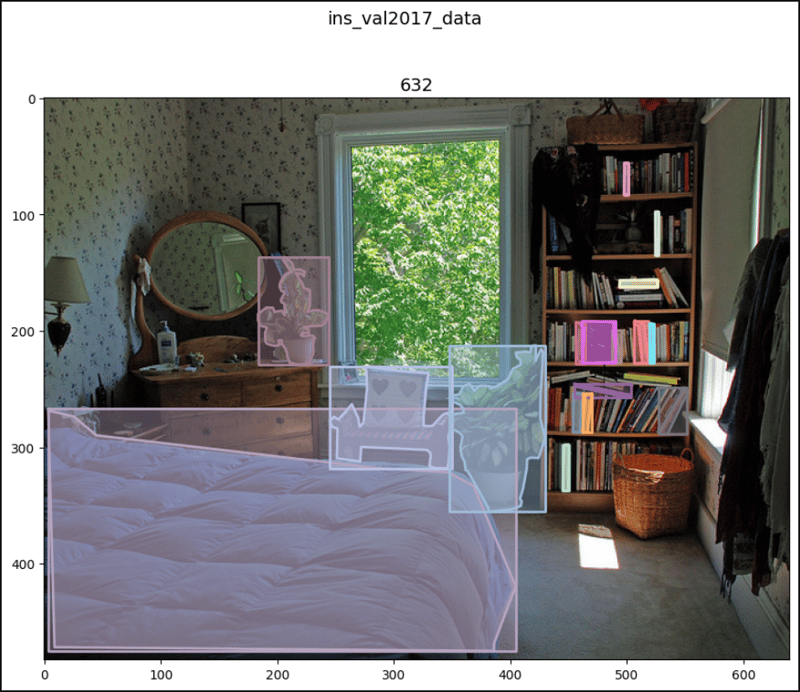

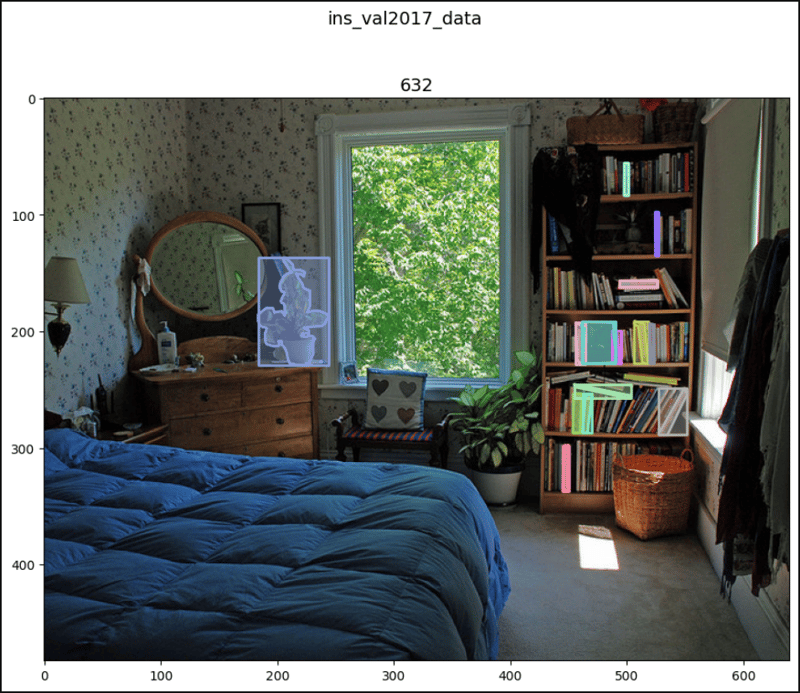

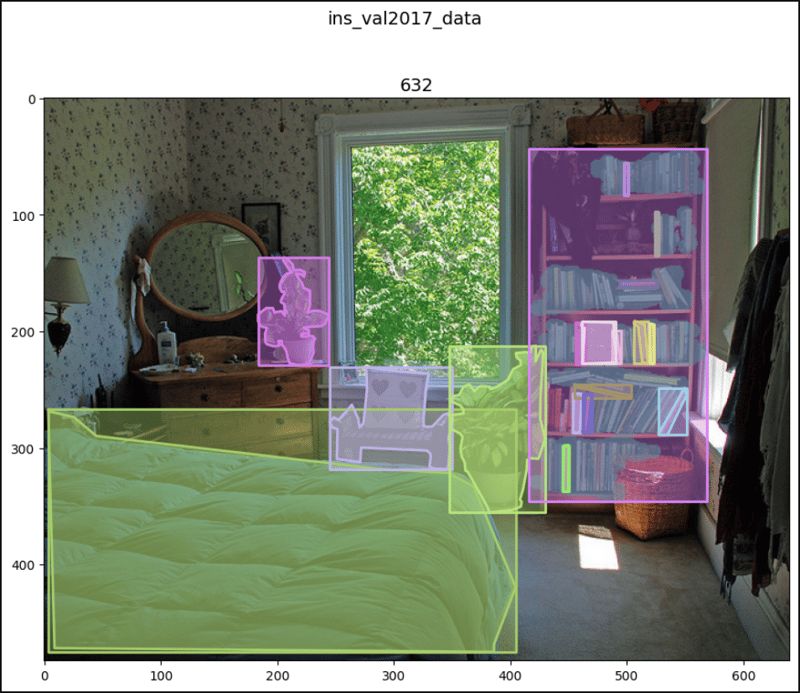

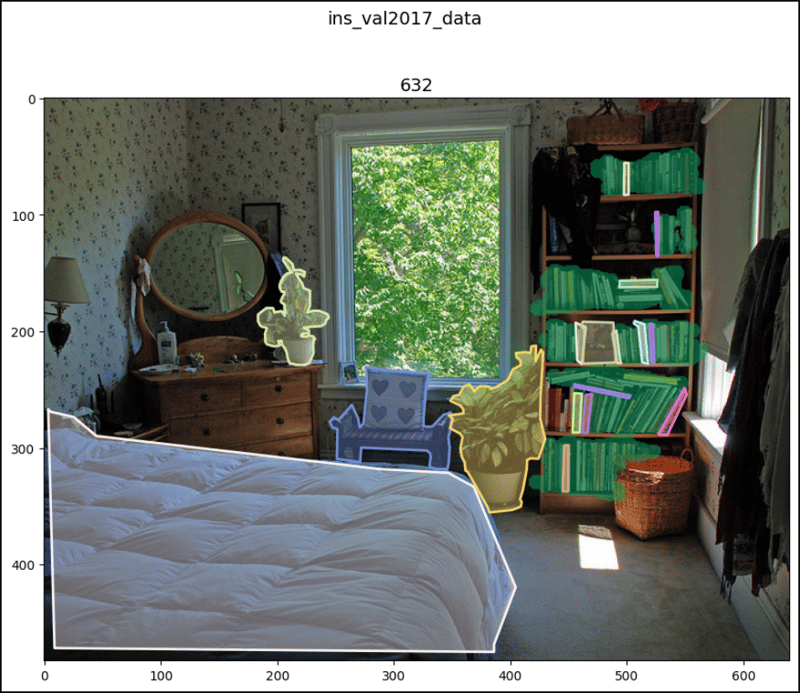

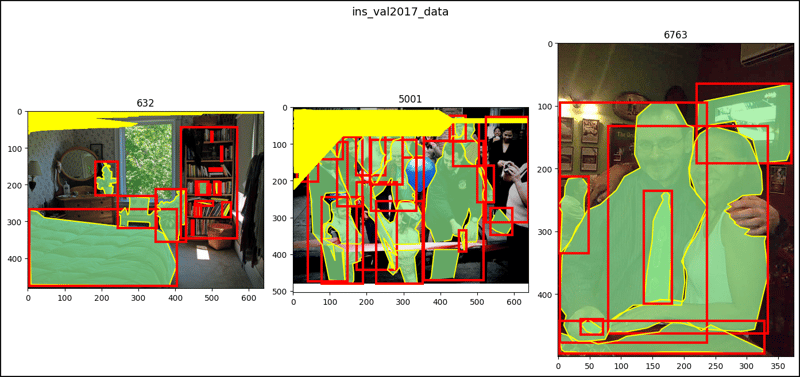

ins_val2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x483>,
#  [{'segmentation': [[5.45, 269.03, 25.08, ..., 3.27, 266.85]],
#    'area': 64019.87940000001, 'iscrowd': 0, 'image_id': 632,
#    'bbox': [3.27, 266.85, 401.23, 208.25], 'category_id': 65,
#    'id': 315724},
#   {'segmentation': ..., 'category_id': 64, 'id': 1610466},
#   ...
#   {'segmentation': {'counts': [201255, 6, 328, 6, 142, ..., 4, 34074],
#    'size': [483, 640]}, 'area': 20933, 'iscrowd': 1, 'image_id': 632,
#    'bbox': [416, 43, 153, 303], 'category_id': 84,
#    'id': 908400000632}])

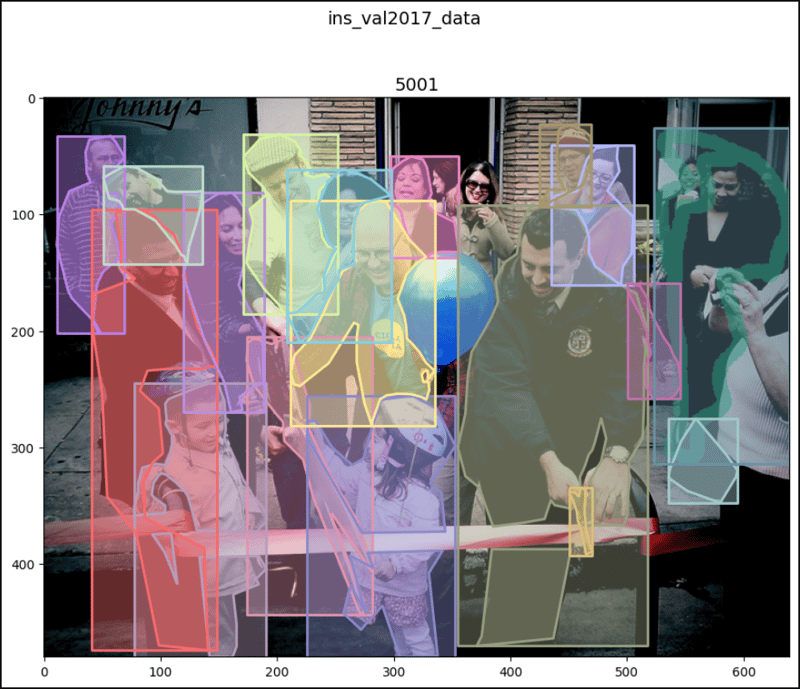

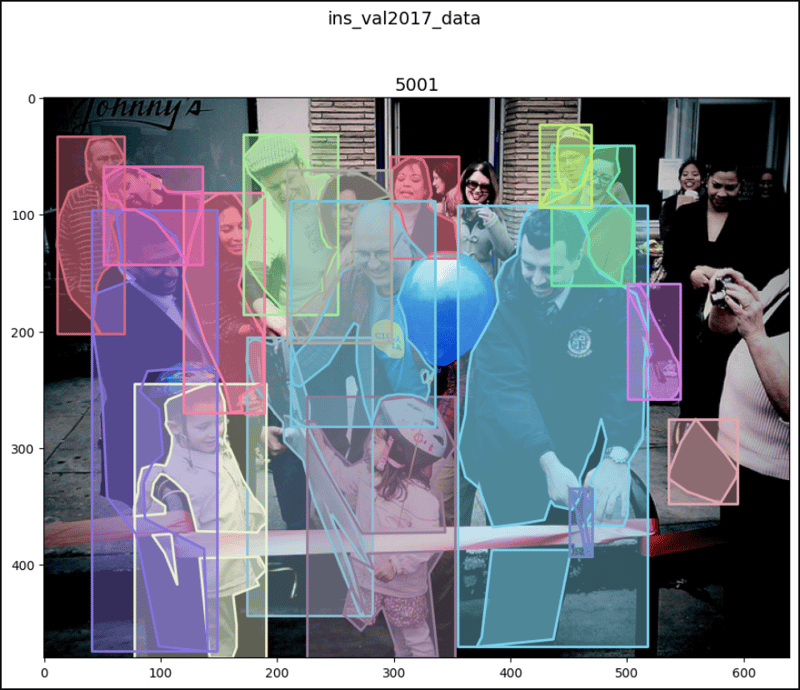

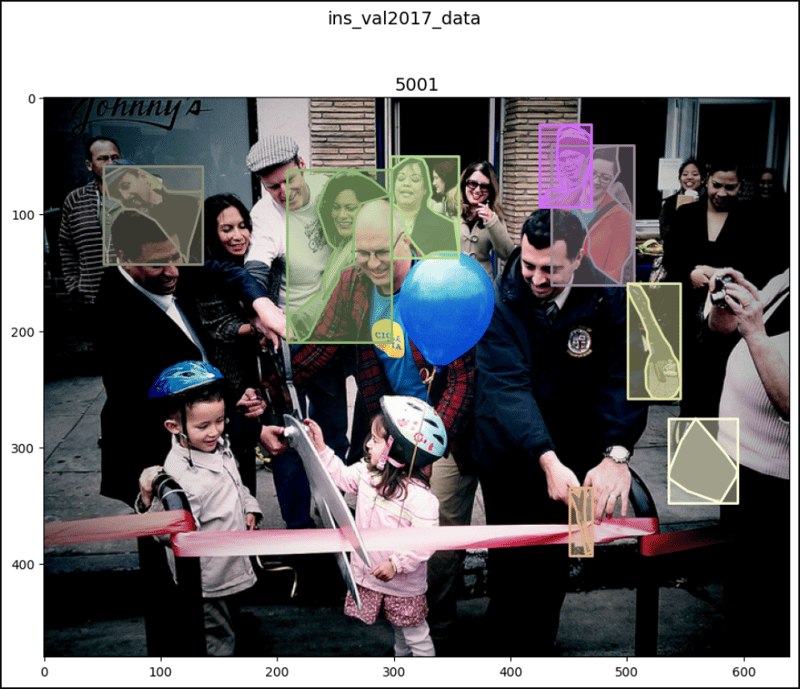

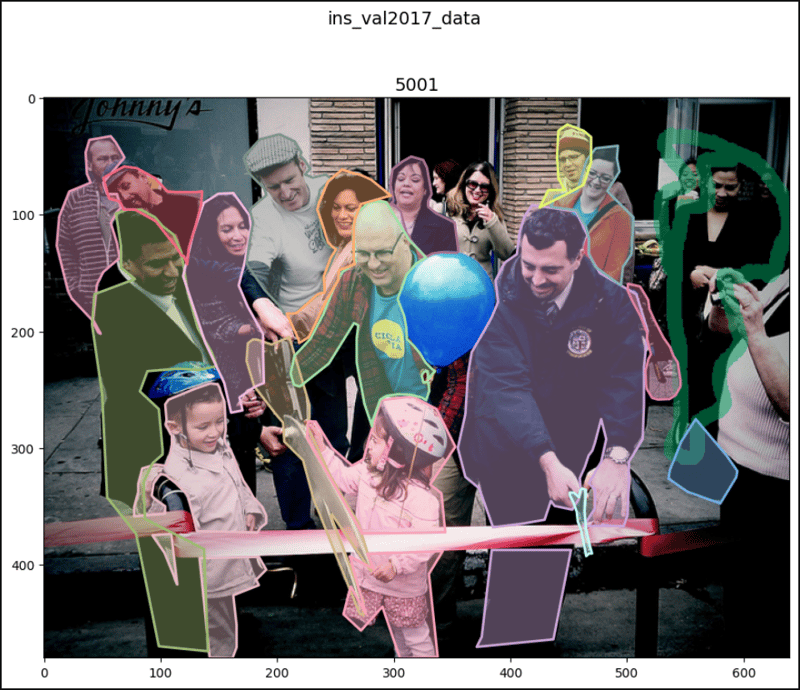

ins_val2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x480>,
#  [{'segmentation': [[210.34, 204.76, 227.6, ..., 195.24, 211.24]],
#    'area': 5645.972500000001, 'iscrowd': 0, 'image_id': 5001,
#    'bbox': [173.66, 204.76, 107.87, 238.39], 'category_id': 87,
#    'id': 1158531},
#   {'segmentation': ..., 'category_id': 1, 'id': 1201627},
#   ...
#   {'segmentation': {'counts': [251128, 24, 451, 32, 446, ..., 43, 353],
#    'size': [480, 640]}, 'area': 10841, 'iscrowd': 1, 'image_id': 5001,
#    'bbox': [523, 26, 116, 288], 'category_id': 1, 'id': 900100005001}])

ins_val2017_data[64]
# (<PIL.Image.Image image mode=RGB size=375x500>,
#  [{'segmentation': [[232.06, 92.6, 369.96, ..., 223.09, 93.72]],
#    'area': 11265.648799999995, 'iscrowd': 0, 'image_id': 6763
#    'bbox': [219.73, 64.57, 151.35, 126.69], 'category_id': 72,
#    'id': 30601},
#   {'segmentation': ..., 'category_id': 1, 'id': 197649},
#   ...
#   {'segmentation': ..., 'category_id': 1, 'id': 1228674}])

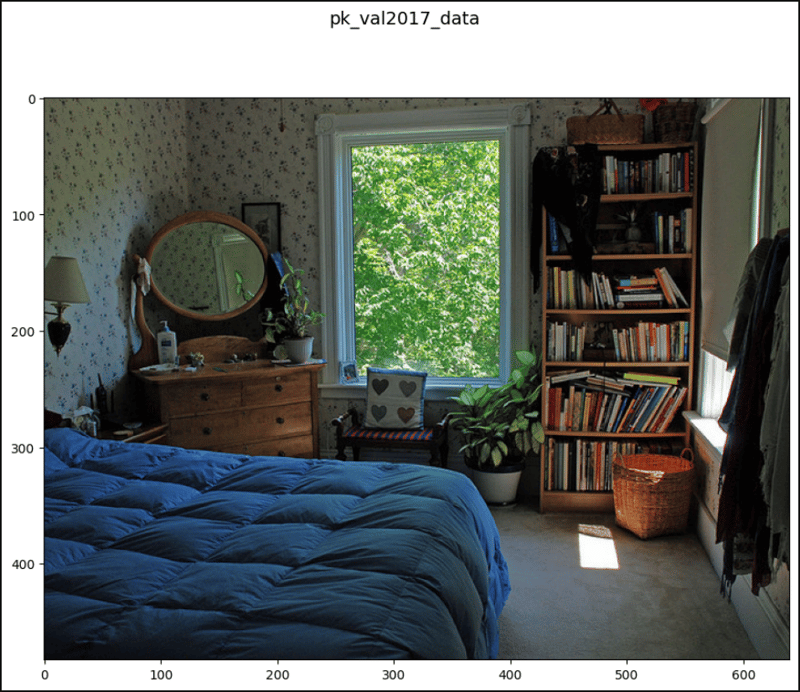

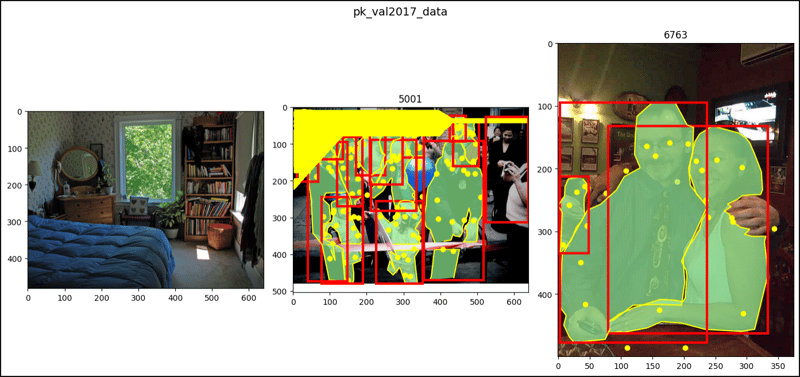

pk_val2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x483>, [])

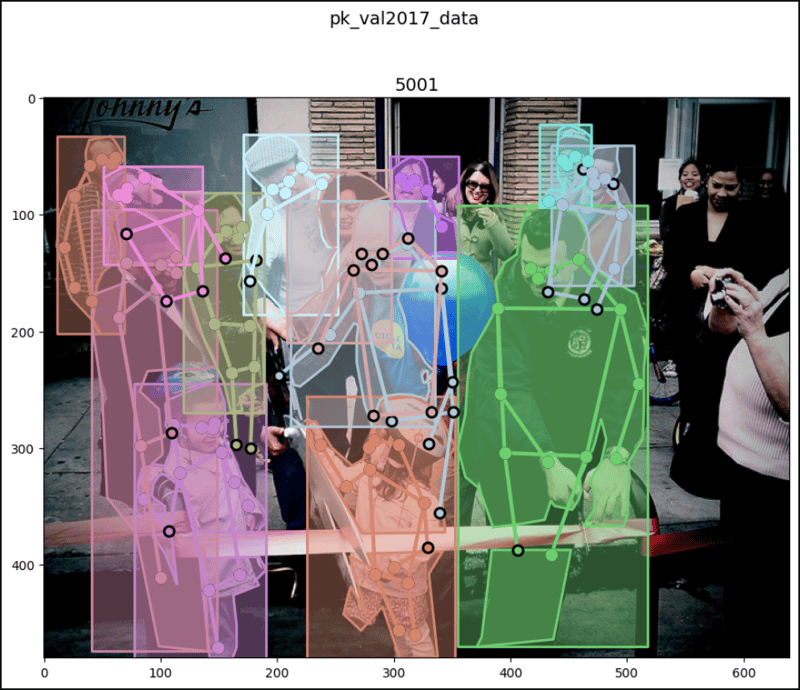

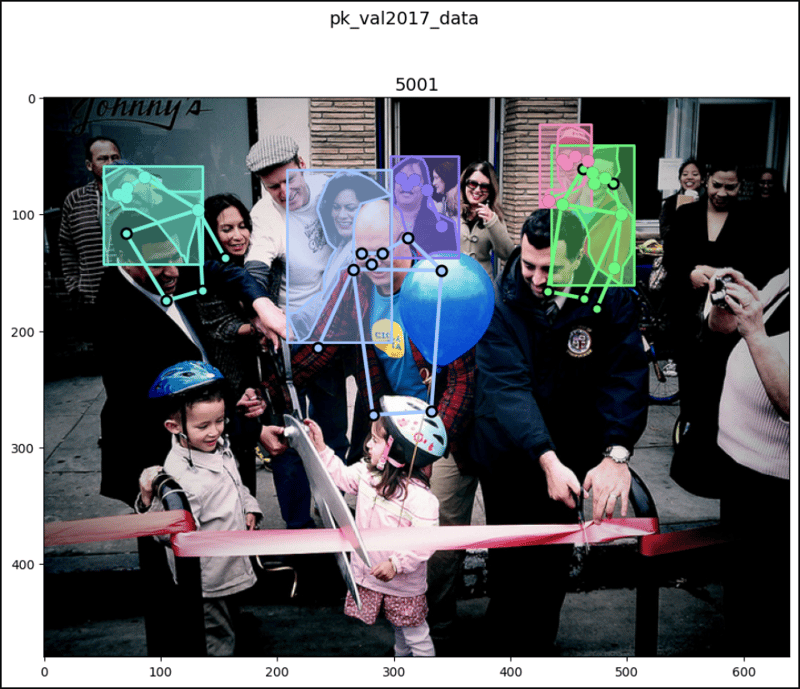

pk_val2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x480>,
#  [{'segmentation': [[42.07, 190.11, 45.3, ..., 48.54, 201.98]],
#    'num_keypoints': 8, 'area': 5156.63, 'iscrowd': 0,
#    'keypoints': [58, 56, 2, 61, ..., 0, 0], 'image_id': 5001,
#    'bbox': [10.79, 32.63, 58.24, 169.35], 'category_id': 1,
#    'id': 1201627},
#   {'segmentation': ..., 'category_id': 1, 'id': 1220394},
#   ...
#   {'segmentation': {'counts': [251128, 24, 451, 32, 446, ..., 43, 353], #    'size': [480, 640]}, 'num_keypoints': 0, 'area': 10841,
#    'iscrowd': 1, 'keypoints': [0, 0, 0, 0, ..., 0, 0],
#    'image_id': 5001, 'bbox': [523, 26, 116, 288],
#    'category_id': 1, 'id': 900100005001}])

pk_val2017_data[64]
# (<PIL.Image.Image image mode=RGB size=375x500>,
#  [{'segmentation': [[94.38, 462.92, 141.57, ..., 100.27, 459.94]],
#    'num_keypoints': 10, 'area': 36153.48825, 'iscrowd': 0,
#    'keypoints': [228, 202, 2, 252, ..., 0, 0], 'image_id': 6763,
#    'bbox': [79.48, 131.87, 254.23, 331.05], 'category_id': 1,
#    'id': 197649},
#   {'segmentation': ..., 'category_id': 1, 'id': 212640},
#   ...
#   {'segmentation': ..., 'category_id': 1, 'id': 1228674}])

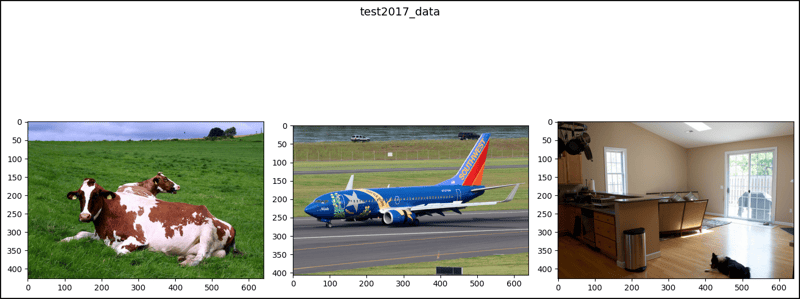

test2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x427>, [])

test2017_data[47]
# (<PIL.Image.Image image mode=RGB size=640x406>, [])

test2017_data[64]
# (<PIL.Image.Image image mode=RGB size=640x427>, [])

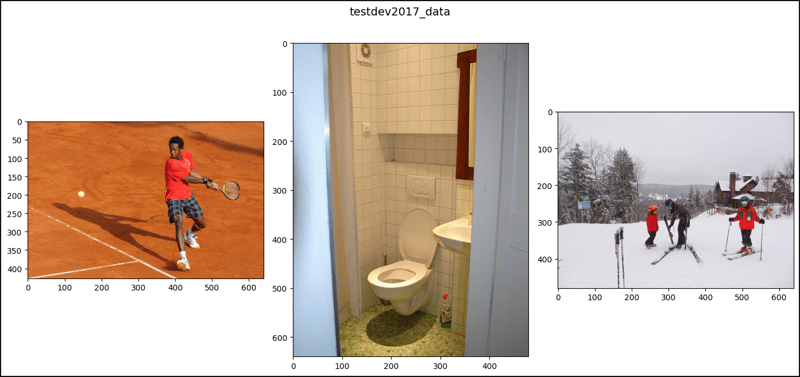

testdev2017_data[2]
# (<PIL.Image.Image image mode=RGB size=640x427>, [])

testdev2017_data[47]
# (<PIL.Image.Image image mode=RGB size=480x640>, [])

testdev2017_data[64]
# (<PIL.Image.Image image mode=RGB size=640x480>, [])

import matplotlib.pyplot as plt
from matplotlib.patches import Polygon, Rectangle
import numpy as np
from pycocotools import mask

# `show_images1()` doesn't work very well for the images with
# segmentations and keypoints so for them, use `show_images2()` which
# more uses the original coco functions.
def show_images1(data, ims, main_title=None):
    file = data.root.split('/')[-1]
    fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(14, 8))
    fig.suptitle(t=main_title, y=0.9, fontsize=14)
    x_crd = 0.02
    for i, axis in zip(ims, axes.ravel()):
        if data[i][1] and "caption" in data[i][1][0]:
            im, anns = data[i]
            axis.imshow(X=im)
            axis.set_title(label=anns[0]["image_id"])
            y_crd = 0.0
            for ann in anns:
                text_list = ann["caption"].split()
                if len(text_list) > 9:
                    text = " ".join(text_list[0:10]) + " ..."
                else:
                    text = " ".join(text_list)
                plt.figtext(x=x_crd, y=y_crd, fontsize=10,
                            s=f'{ann["id"]}:\n{text}')
                y_crd -= 0.06
            x_crd += 0.325
            if i == 2 and file == "val2017":
                x_crd += 0.06
        if data[i][1] and "segmentation" in data[i][1][0]:
            im, anns = data[i]
            axis.imshow(X=im)
            axis.set_title(label=anns[0]["image_id"])
            for ann in anns:
                if "counts" in ann['segmentation']:
                    seg = ann['segmentation']

                    # rle is Run Length Encoding.
                    uncompressed_rle = [seg['counts']]
                    height, width = seg['size']
                    compressed_rle = mask.frPyObjects(pyobj=uncompressed_rle,
                                                      h=height, w=width)
                    # rld is Run Length Decoding.
                    compressed_rld = mask.decode(rleObjs=compressed_rle)
                    y_plts, x_plts = np.nonzero(a=np.squeeze(a=compressed_rld))
                    axis.plot(x_plts, y_plts, color='yellow')
                else:
                    for seg in ann['segmentation']:
                        seg_arrs = np.split(ary=np.array(seg),
                                            indices_or_sections=len(seg)/2)
                        poly = Polygon(xy=seg_arrs,
                                       facecolor="lightgreen", alpha=0.7)
                        axis.add_patch(p=poly)
                        x_plts = [seg_arr[0] for seg_arr in seg_arrs]
                        y_plts = [seg_arr[1] for seg_arr in seg_arrs]
                        axis.plot(x_plts, y_plts, color='yellow')
                x, y, w, h = ann['bbox']
                rect = Rectangle(xy=(x, y), width=w, height=h,
                                 linewidth=3, edgecolor='r',
                                 facecolor='none', zorder=2)
                axis.add_patch(p=rect)
                if data[i][1] and 'keypoints' in data[i][1][0]:
                    kps = ann['keypoints']
                    kps_arrs = np.split(ary=np.array(kps),
                                        indices_or_sections=len(kps)/3)
                    x_plts = [kps_arr[0] for kps_arr in kps_arrs]
                    y_plts = [kps_arr[1] for kps_arr in kps_arrs]
                    nonzeros_x_plts = []
                    nonzeros_y_plts = []
                    for x_plt, y_plt in zip(x_plts, y_plts):
                        if x_plt == 0 and y_plt == 0:
                            continue
                        nonzeros_x_plts.append(x_plt)
                        nonzeros_y_plts.append(y_plt)
                    axis.scatter(x=nonzeros_x_plts, y=nonzeros_y_plts,
                                 color='yellow')
                    # ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ Bad result ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
                    # axis.plot(nonzeros_x_plts, nonzeros_y_plts)
        if not data[i][1]:
            im, _ = data[i]
            axis.imshow(X=im)
    fig.tight_layout()
    plt.show()

ims = (2, 47, 64)

show_images1(data=cap_train2017_data, ims=ims,
             main_title="cap_train2017_data")
show_images1(data=ins_train2017_data, ims=ims,
             main_title="ins_train2017_data")
show_images1(data=pk_train2017_data, ims=ims,
             main_title="pk_train2017_data")
print()
show_images1(data=cap_val2017_data, ims=ims,
             main_title="cap_val2017_data")
show_images1(data=ins_val2017_data, ims=ims,
             main_title="ins_val2017_data")
show_images1(data=pk_val2017_data, ims=ims,
             main_title="pk_val2017_data")
print()
show_images(data=test2017_data, ims=ims,
            main_title="test2017_data")
show_images(data=testdev2017_data, ims=ims,
            main_title="testdev2017_data")

# `show_images2()` works very well for the images with segmentations and
# keypoints.
def show_images2(data, index, main_title=None):
    img_set = data[index]
    img, img_anns = img_set

    if img_anns and "segmentation" in img_anns[0]:
        img_id = img_anns[0]['image_id']
        coco = data.coco
        def show_image(imgIds, areaRng=[],
                       iscrowd=None, draw_bbox=False):
            plt.figure(figsize=(11, 8))
            plt.imshow(X=img)
            plt.suptitle(t=main_title, y=1, fontsize=14)
            plt.title(label=img_id, fontsize=14)
            anns_ids = coco.getAnnIds(imgIds=img_id,
                                      areaRng=areaRng, iscrowd=iscrowd)
            anns = coco.loadAnns(ids=anns_ids)
            coco.showAnns(anns=anns, draw_bbox=draw_bbox)
            plt.show()
        show_image(imgIds=img_id, draw_bbox=True)
        show_image(imgIds=img_id, draw_bbox=False)
        show_image(imgIds=img_id, iscrowd=False, draw_bbox=True)
        show_image(imgIds=img_id, areaRng=[0, 5000], draw_bbox=True)
    elif img_anns and not "segmentation" in img_anns[0]:
        plt.figure(figsize=(11, 8))
        img_id = img_anns[0]['image_id']
        plt.imshow(X=img)
        plt.suptitle(t=main_title, y=1, fontsize=14)
        plt.title(label=img_id, fontsize=14)
        plt.show()
    elif not img_anns:
        plt.figure(figsize=(11, 8))
        plt.imshow(X=img)
        plt.suptitle(t=main_title, y=1, fontsize=14)
        plt.show()
show_images2(data=ins_val2017_data, index=2,
             main_title="ins_val2017_data")
print()
show_images2(data=pk_val2017_data, index=2,
             main_title="pk_val2017_data")
print()
show_images2(data=ins_val2017_data, index=47,
             main_title="ins_val2017_data")
print()
show_images2(data=pk_val2017_data, index=47,
             main_title="pk_val2017_data")

image description

image description

image description


image description

image description

image description


image description

image description


image description

image description

image description

image description


image description


image description

image description

image description

image description


image description

image description

image description

image description

本篇关于《PyTorch 中的 CocoDetection(2)》的介绍就到此结束啦,但是学无止境,想要了解学习更多关于文章的相关知识,请关注golang学习网公众号!

版本声明
本文转载于:dev.to 如有侵犯,请联系study_golang@163.com删除
使用 Python 的密码生成脚本使用 Python 的密码生成脚本
上一篇
使用 Python 的密码生成脚本
Js 位 - 条件分支)
下一篇
Js 位 - 条件分支)
查看更多
最新文章
查看更多
课程推荐
  • 前端进阶之JavaScript设计模式
    前端进阶之JavaScript设计模式
    设计模式是开发人员在软件开发过程中面临一般问题时的解决方案,代表了最佳的实践。本课程的主打内容包括JS常见设计模式以及具体应用场景,打造一站式知识长龙服务,适合有JS基础的同学学习。
    542次学习
  • GO语言核心编程课程
    GO语言核心编程课程
    本课程采用真实案例,全面具体可落地,从理论到实践,一步一步将GO核心编程技术、编程思想、底层实现融会贯通,使学习者贴近时代脉搏,做IT互联网时代的弄潮儿。
    511次学习
  • 简单聊聊mysql8与网络通信
    简单聊聊mysql8与网络通信
    如有问题加微信:Le-studyg;在课程中,我们将首先介绍MySQL8的新特性,包括性能优化、安全增强、新数据类型等,帮助学生快速熟悉MySQL8的最新功能。接着,我们将深入解析MySQL的网络通信机制,包括协议、连接管理、数据传输等,让
    498次学习
  • JavaScript正则表达式基础与实战
    JavaScript正则表达式基础与实战
    在任何一门编程语言中,正则表达式,都是一项重要的知识,它提供了高效的字符串匹配与捕获机制,可以极大的简化程序设计。
    487次学习
  • 从零制作响应式网站—Grid布局
    从零制作响应式网站—Grid布局
    本系列教程将展示从零制作一个假想的网络科技公司官网,分为导航,轮播,关于我们,成功案例,服务流程,团队介绍,数据部分,公司动态,底部信息等内容区块。网站整体采用CSSGrid布局,支持响应式,有流畅过渡和展现动画。
    484次学习
查看更多
AI推荐
  • 千音漫语:智能声音创作助手,AI配音、音视频翻译一站搞定!
    千音漫语
    千音漫语,北京熠声科技倾力打造的智能声音创作助手,提供AI配音、音视频翻译、语音识别、声音克隆等强大功能,助力有声书制作、视频创作、教育培训等领域,官网:https://qianyin123.com
    158次使用
  • MiniWork:智能高效AI工具平台,一站式工作学习效率解决方案
    MiniWork
    MiniWork是一款智能高效的AI工具平台,专为提升工作与学习效率而设计。整合文本处理、图像生成、营销策划及运营管理等多元AI工具,提供精准智能解决方案,让复杂工作简单高效。
    152次使用
  • NoCode (nocode.cn):零代码构建应用、网站、管理系统,降低开发门槛
    NoCode
    NoCode (nocode.cn)是领先的无代码开发平台,通过拖放、AI对话等简单操作,助您快速创建各类应用、网站与管理系统。无需编程知识,轻松实现个人生活、商业经营、企业管理多场景需求,大幅降低开发门槛,高效低成本。
    164次使用
  • 达医智影:阿里巴巴达摩院医疗AI影像早筛平台,CT一扫多筛癌症急慢病
    达医智影
    达医智影,阿里巴巴达摩院医疗AI创新力作。全球率先利用平扫CT实现“一扫多筛”,仅一次CT扫描即可高效识别多种癌症、急症及慢病,为疾病早期发现提供智能、精准的AI影像早筛解决方案。
    161次使用
  • 智慧芽Eureka:更懂技术创新的AI Agent平台,助力研发效率飞跃
    智慧芽Eureka
    智慧芽Eureka,专为技术创新打造的AI Agent平台。深度理解专利、研发、生物医药、材料、科创等复杂场景,通过专家级AI Agent精准执行任务,智能化工作流解放70%生产力,让您专注核心创新。
    169次使用
微信登录更方便
  • 密码登录
  • 注册账号
登录即同意 用户协议隐私政策
返回登录
  • 重置密码
