摘要:

说明如何优化exists的join查询优化器的处理

核心函数:

TwoDimensionalJoiner::ChooseJoinAlgorithm

JoinAlgType TwoDimensionalJoiner::ChooseJoinAlgorithm([[maybe_unused]] MultiIndex &mind, Condition &cond) {
  JoinAlgType join_alg = JoinAlgType::JTYPE_GENERAL;

  if (cond[0].IsType_JoinSimple() && cond[0].op == common::Operator::O_EQ) {
    if ((cond.Size() == 1) && !stonedb_sysvar_force_hashjoin)
      join_alg = JoinAlgType::JTYPE_MAP;  // available types checked inside
    else
      join_alg = JoinAlgType::JTYPE_HASH;
  } else {
    if (cond[0].IsType_JoinSimple() &&
        (cond[0].op == common::Operator::O_MORE_EQ || cond[0].op == common::Operator::O_MORE ||
         cond[0].op == common::Operator::O_LESS_EQ || cond[0].op == common::Operator::O_LESS))
      join_alg = JoinAlgType::JTYPE_SORT;
  }
  return join_alg;
}

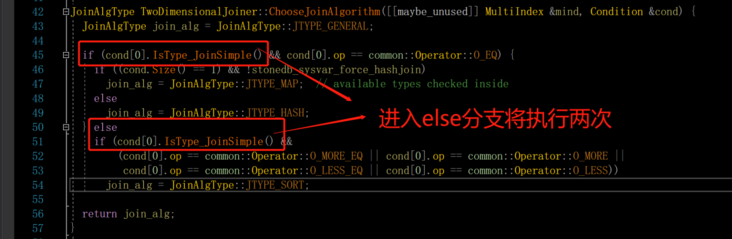

选择join优化器问题分析:

1. 仅判定join simple场景，未判断exists子句
2. cond[0].IsType_JoinSimple() 如果走入了else分支，相当于被执行了两次

ChooseJoinAlgorithm函数优化:

1. 加入exists的判定, 以 IsType_JoinSimple 和 == common::Operator::O_EQ条件对待
2. 优化代码结构, 清理冗余的cond[0].IsType_JoinSimple()执行
3. 其他逻辑不做任何修改

JoinAlgType TwoDimensionalJoiner::ChooseJoinAlgorithm([[maybe_unused]] MultiIndex &mind, Condition &cond) {
  do {
    if (cond[0].IsExists()) {
      break;
    }

    if (!cond[0].IsType_JoinSimple()) {
      return JoinAlgType::JTYPE_GENERAL;
    }

    if (cond[0].op == common::Operator::O_EQ) {
      break;
    }

    if (cond[0].op == common::Operator::O_MORE_EQ || cond[0].op == common::Operator::O_MORE ||
             cond[0].op == common::Operator::O_LESS_EQ || cond[0].op == common::Operator::O_LESS) {
      return JoinAlgType::JTYPE_SORT;
    }
  } while (0);

  JoinAlgType join_alg = JoinAlgType::JTYPE_HASH;
  if  ((!stonedb_sysvar_force_hashjoin) && (cond.Size() == 1))
      join_alg = JoinAlgType::JTYPE_MAP;  // available types checked inside

  return join_alg;
}

代码优化后exists场景分析:

1. 如果未开启强制hash join查询, 且cond.Size() == 1， 则进行JTYPE_MAP查询
2. 需要强制开启hash join才可进入hash join查询, 当前测试不开启强制的hash join. 以JTYPE_MAP进行测试

优化走JTYPE_MAP查询测试:

MAP子查询耗时：

mysql> select
->                             o_orderpriority,
->                             count(*) as order_count
->                         from
->                             orders
->                         where
->                             o_orderdate >= date '1993-07-01'
->                             and o_orderdate                              and exists (
  ->                                 select
  ->                                     *
  ->                                 from
  ->                                     lineitem
  ->                                 where
  ->                                     l_orderkey = o_orderkey
  ->                                     and l_commitdate                              )
  ->                         group by
  ->                             o_orderpriority
  ->                         order by
  ->                             o_orderpriority ;
  +-----------------+-------------+
  | o_orderpriority | order_count |
  +-----------------+-------------+
  | 1-URGENT        |     1147477 |
  | 2-HIGH          |     1146447 |
  | 3-MEDIUM        |     1146770 |
  | 4-NOT SPECIFIED |     1146281 |
  | 5-LOW           |     1146801 |
  +-----------------+-------------+
  5 rows in set (27.36 sec)

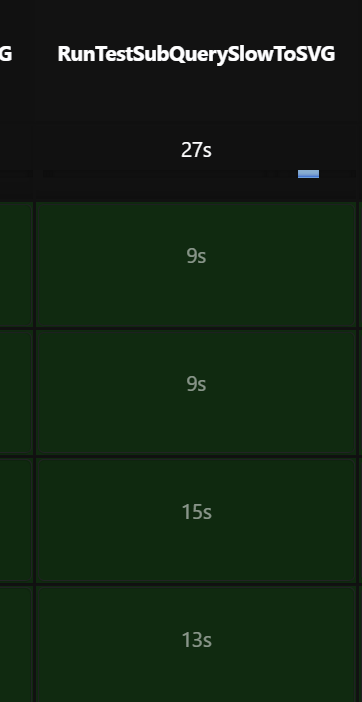

MAP子查询对比之前的子查询耗时:

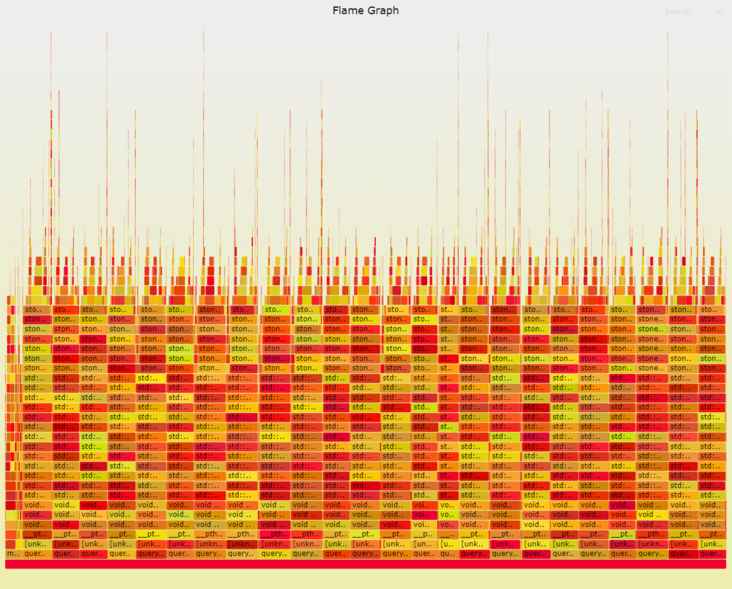

JTYPE_MAP逻辑的火焰图

强制走JTYPE_HASH查询测试:

强制开启hash join优化, 对比同样场景下与map查询的区别

HASH子查询耗时:

mysql> select
    ->                             o_orderpriority,
    ->                             count(*) as order_count
    ->                         from
    ->                             orders
    ->                         where
    ->                             o_orderdate >= date '1993-07-01'
    ->                             and o_orderdate                              and exists (
    ->                                 select
    ->                                     *
    ->                                 from
    ->                                     lineitem
    ->                                 where
    ->                                     l_orderkey = o_orderkey
    ->                                     and l_commitdate                              )
    ->                         group by
    ->                             o_orderpriority
    ->                         order by
    ->                             o_orderpriority ;
+-----------------+-------------+
| o_orderpriority | order_count |
+-----------------+-------------+
| 1-URGENT        |     1147477 |
| 2-HIGH          |     1146447 |
| 3-MEDIUM        |     1146770 |
| 4-NOT SPECIFIED |     1146281 |
| 5-LOW           |     1146801 |
+-----------------+-------------+
5 rows in set (27.60 sec)

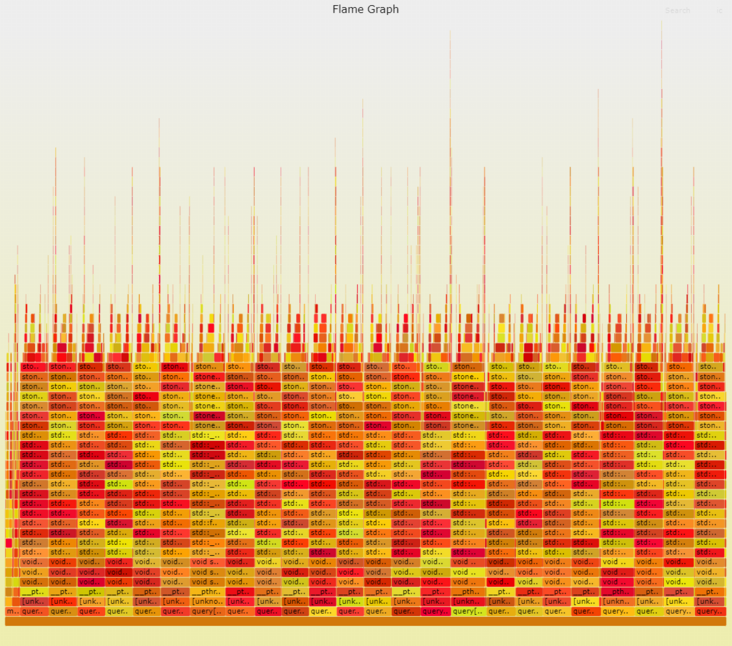

HASH子查询的火焰图:
